Ultrasonic Dog Repeller Circuit

Published:2013/8/27 2:29:00 Author:lynne | Keyword: Ultrasonic Dog Repeller Circuit | From:SeekIC

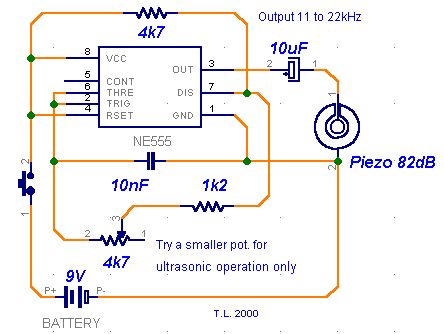

This ultrasonic dog repeller circuit will chase away angry dogs. It is build with the all known 555 circuit, a buzzer and a little ferrite transformator. The ultrasonic frequency must be set with a dog nearby. Circuit number 1 uses the well known NE555 IC, couple of components and a EE15 ferrite transformer. Adjust R3 at resonance frequency of the piezo transducer for maximum aplitude of the repeller ultrasonic sound. At 30 KHz this can reach a value of 108 Vpp. Without the piezo the output voltage is around 200 Vpp.
