VOLTAGE DOUBLER Circuit

Published:2013/3/5 21:07:00 Author:Ecco | Keyword: VOLTAGE DOUBLER | From:SeekIC

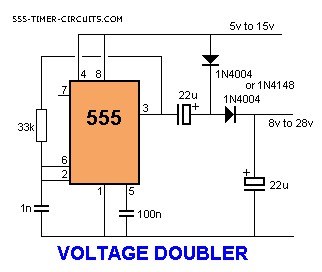

A voltage higher than the supply can be created by a Charge-Pump circuit created with a 555, diodes and capacitors as shown in the following circuit. The output will deliver about 50mA.
