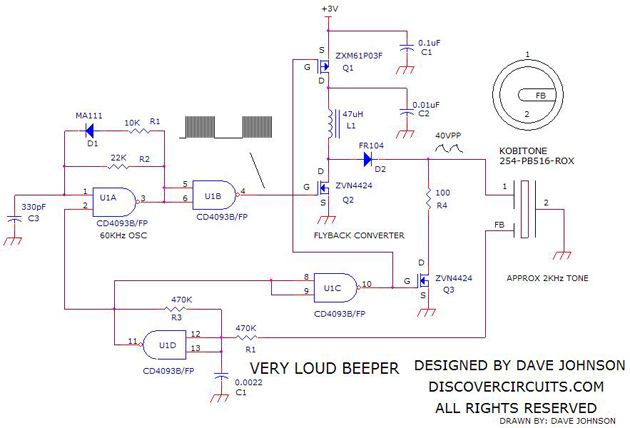

Getting a high sound intensity from a piezoelectric type beeper is not easy when the available DC supply is only 3v. The circuit below is not only efficient but produces a very intense sound. The circuit combines a voltage boost section with a resonant feedback network. The voltage applied to the piezoelectric wafer is about 40 volts peak to peak. The result is a circuit that generates an attention getting sound without drawing a lot of current. Source: discovercircuits
