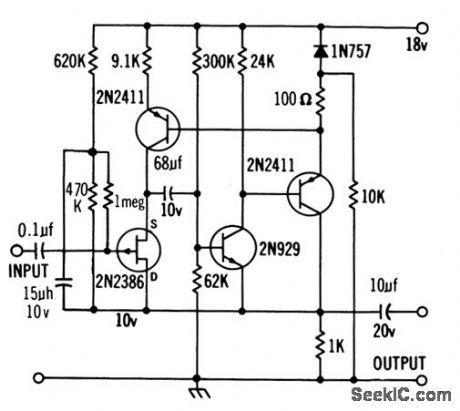

WIDEBAND_UNITY_GAIN_FET

Published:2009/7/10 5:21:00 Author:May | From:SeekIC

Input impedance is about 100 meg, and response is within 3 db from below 10 cps to 1 Mc for 100K generator resistance.-Texas Instruments Inc., Solid-State Communications, MAcGraw-Hill, N.Y., 1966, p 296.
