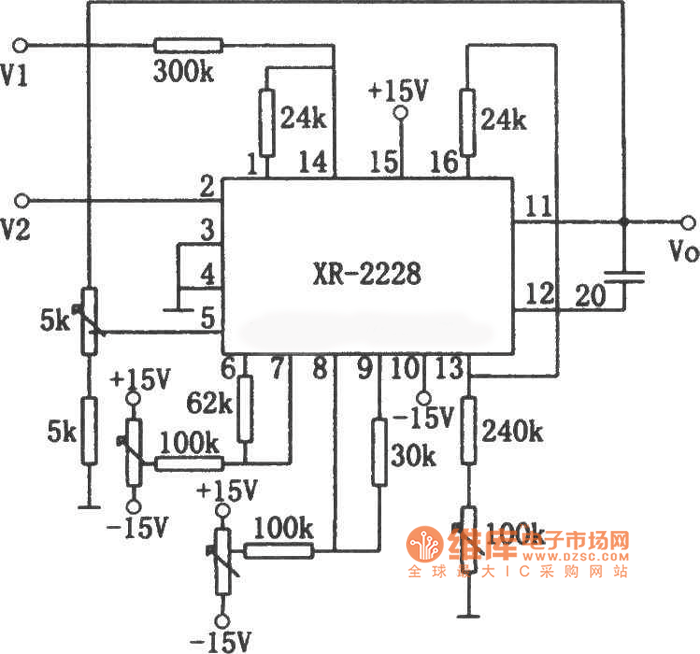

This circuit is composed by monolithic on time-multiplier integrated circuit XR-2228. The relationship of output signal and input signal V1, V2is: Vo=10V1/V2. The input signal V1 can positiveor negative, but V2 mustbe negative. If V2 is positive, the circuit is locked (it will notdamage the manifold). Each potentiometer used to regulate circuit to the best working conditions, and to calibrate the circuit by known reference voltage.
