X_AMPLIFIER_FOR_COINCIDENT_FLUX_MEM_ORY

Published:2009/7/16 3:46:00 Author:Jessie | From:SeekIC

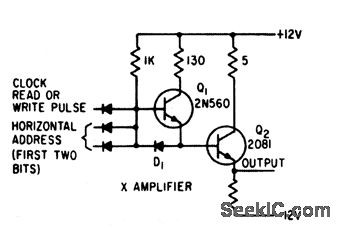

Inputs to and gate are dock read or write pulse and first two binary digits of horizontal address, forming one of the two translations for horizontal matrix of 1,120-bit memory.-H. F. Priebe, Jr., Three-Hole Cores for Coincident-Flux Memory, Electronics, 33:31, p 94-97.
