wireless remote control/touch dimmer circuit(RCM1A/RCM1B)

Published:2011/6/20 8:10:00 Author:Lena | Keyword: wireless, remote control, touch dimmer | From:SeekIC

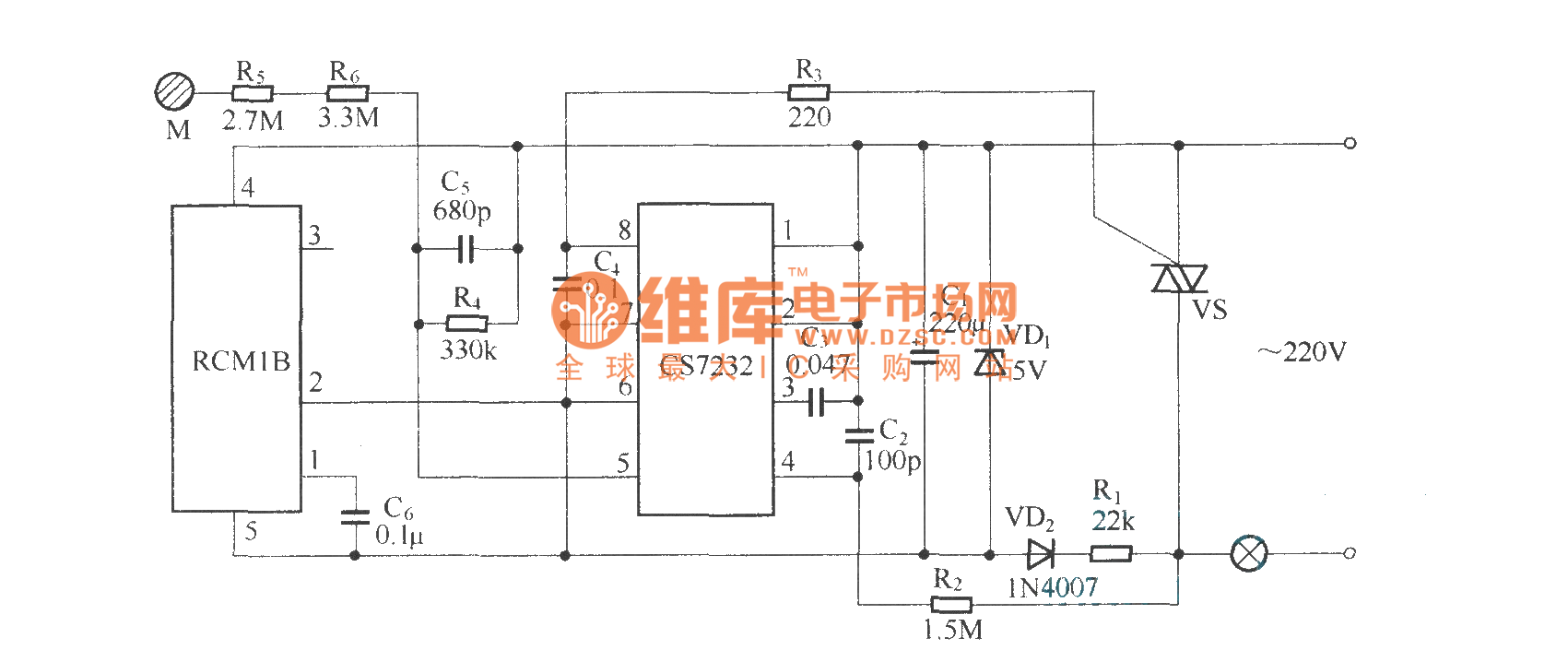

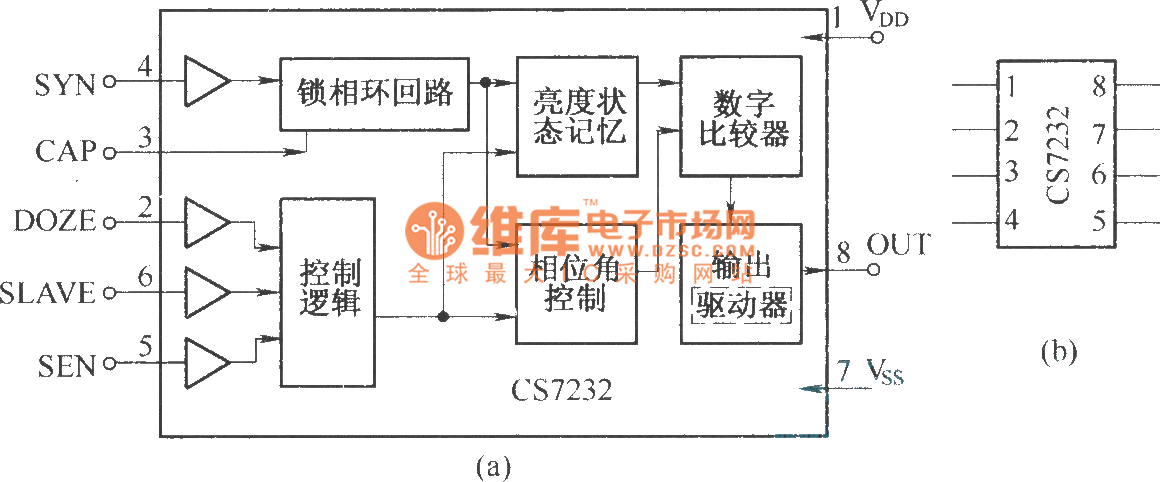

Wireless remote control/touch dimmer circuit is an incandescent lamp dimmer switch with wireless remote control component RCM1A/RCM1B and touch dimmer integrated circuit CS7232 as the core. It can be used to control droplight, reading lamp and wall lamp etc, provided with small bulk, convenient usage, stable and reliable work characteristics.CS7232 is a CMOS type integrated circuit used to control incandescent lamp dimmer. It can control breakover of bidirectional thyristor to realize lamp brightness control, provided with low power loss, multi purpose , high sensitivity etc characteristics.
