wireless remote control/touch switch circuit

Published:2011/7/12 7:01:00 Author:Lena | Keyword: wireless, remote control, touch switch | From:SeekIC

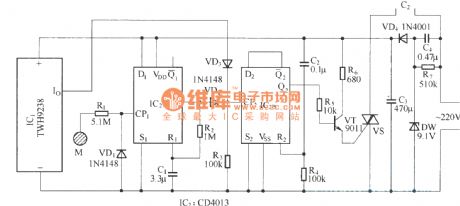

This remote control switch circuit can be used as far distance wireless remote control operation, can also control touch in near distance, the usage is very convenient. Composition principle is shown as the figure, it mainly composed by wireless remote control receiving component, touch control circuit, bistable states switch control circuit and power supply circuit. Remote control transmitting circuit uses finished product component TWH9236 which is not shown in figure.
