140_180_MHz_AT_30_W

Published:2009/7/14 2:55:00 Author:May | From:SeekIC

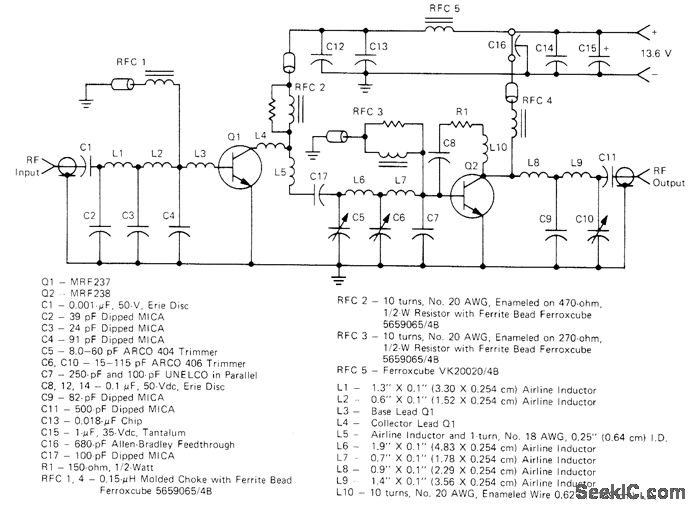

Two-transistor amplifier provides gain of over 20 dB for VHF marine, amateur, and commercial transmitters. Trimmers are tuned for peak output at center frequency in 10-MHz range of interest. Will operate into 30:1 mismatch without damage.-H. Burger and T. Bishop, Two VHF Highband Gain Blocks Form 20-dB, 30-Watt Amplifier Chain, Motorola, Phoenix, AZ, 1975, EB-53.
