16_30_MHz_20_W_HIGH_GAIN_DRIVER

Published:2009/7/14 3:13:00 Author:May | From:SeekIC

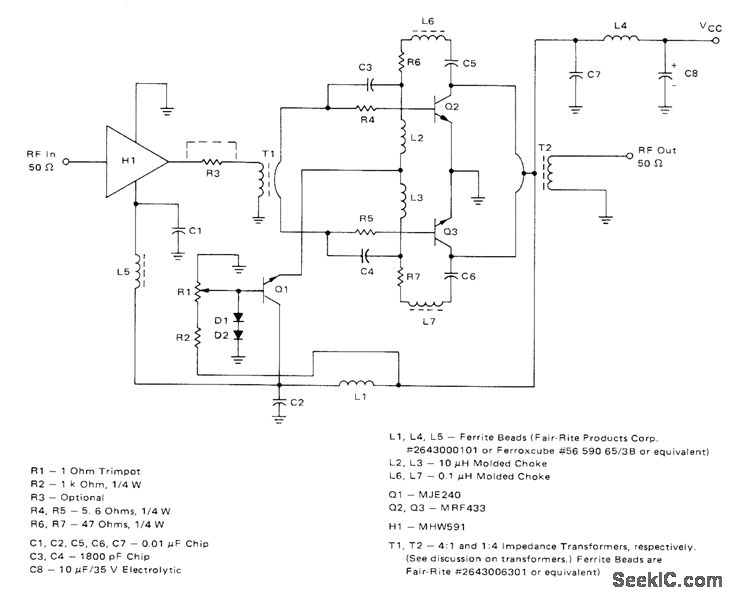

Broadband amplifier operating from 12-V supply uses Motorola MRF433 power transistors for class AB operation and MHW591 as predriver. For class A operation, power transistors should be MRF426. Q2 does not require heatsink because its peak dissipation is under 1 W. Power gain is 55 dB well beyond four-octave band of amplifier, and input VSWR is under 1.2.-H. 0. Granberg, Low-Distortion 1.6 to 30 MHz SSB Drivel Designs, Motorola, Phoenix, AZ, 1977, AN-779, p7.
