1_10_100_KILOBIT_FIBER_OPTIC_RECEIVER

Published:2009/7/2 3:02:00 Author:May | From:SeekIC

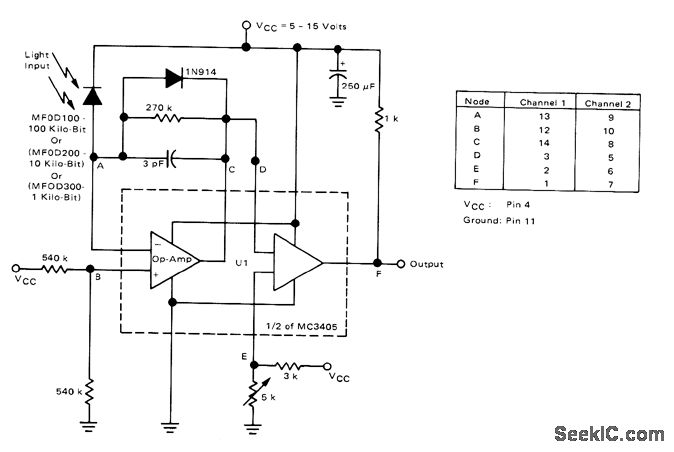

Choice of input device determines operating speed of receiver. MC3405 contains two opamps and two comparators, permitting use as two-channel receiver. Table gives pin connections foi each channeL- Basic Experimental Fiber Optic Systems, Motorola, Phoenix, AZ, 1978.
