1/10/100kb light receiving circuit

Published:2011/4/20 1:16:00 Author:muriel | Keyword: 1/10/100kb, light receiving circuit | From:SeekIC

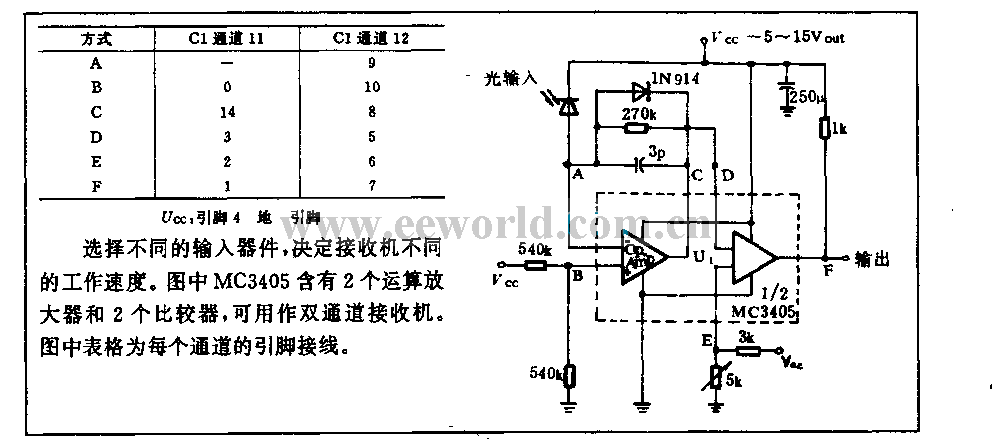

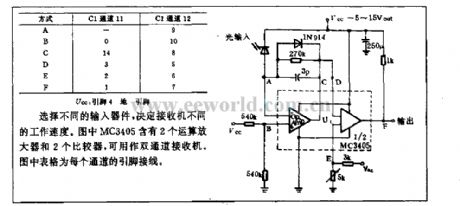

The working speed of receiver is decided by the input device. The figure MC3405 contains 2 amplifiers and 2 comparators,they can be used as a dual channel receiver. The form in the Diagram is pins wiring for every channel.
