20_KILOBIT_FIBER_OPTIC_RECEIVER

Published:2009/7/2 3:33:00 Author:May | From:SeekIC

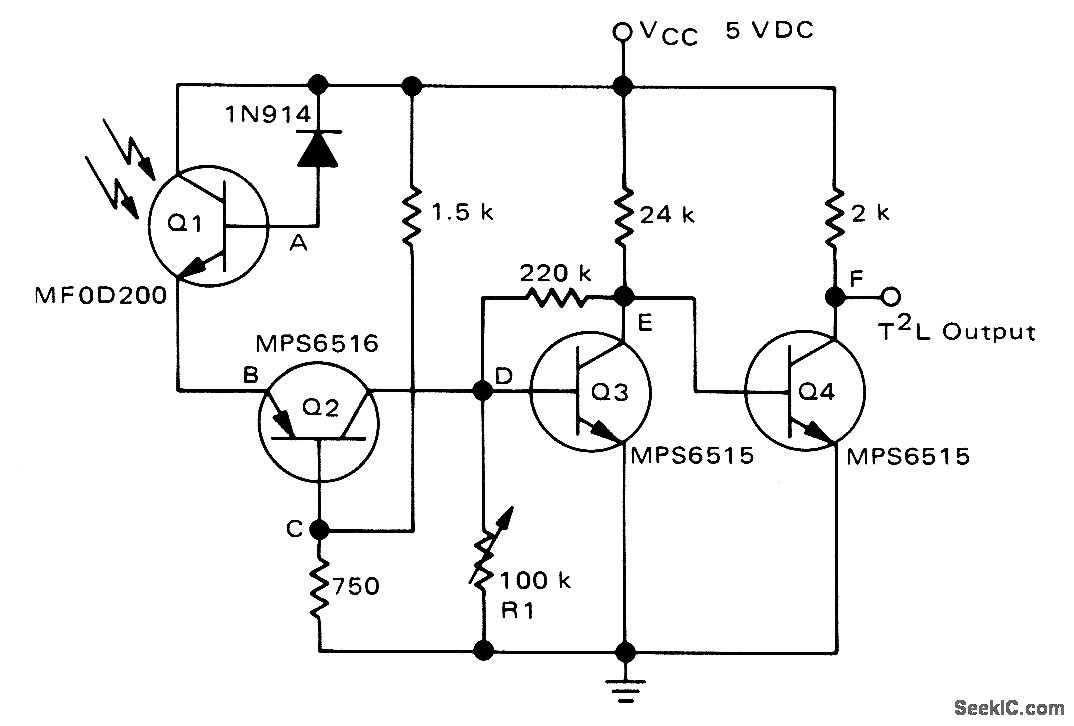

Phototransistor driving three-transistor amplifier provides TTL output for data rates up to 20 kilobits.- Basic Experimental Fiber Optic Systems, Motorola, Phoenix, AZ, 1978.
