40000_BITS_PER_SEC_OVER_PHONE_LINE

Published:2009/7/19 22:33:00 Author:Jessie | From:SeekIC

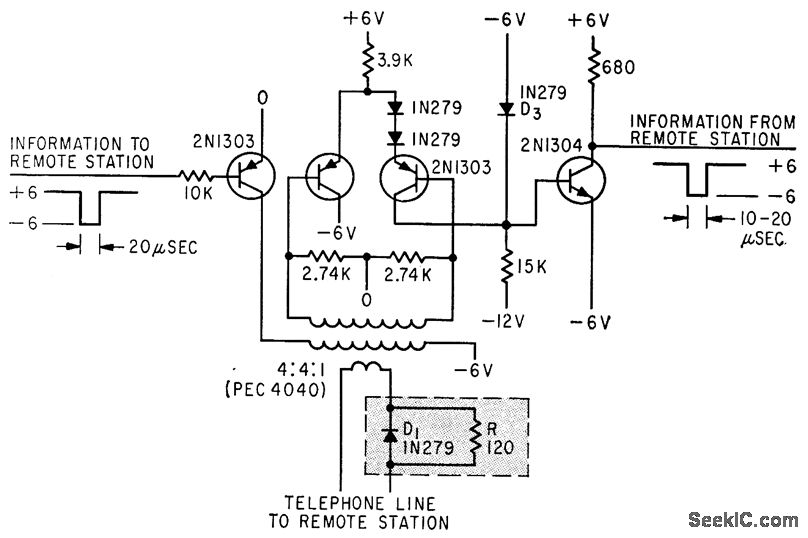

For interconnecting computers, one-transistor line driver und wave shaper permit transmitting 40,000 bits per second up lo half a mile over standard voice-grade phone lines. Three-transistor line receiver and pulse slicer receive data.-R. M. Lee, Speeding Digital Data Over Phone Lines, Electronics, 36:39, p 30-31.
