ASTABLE_USING_CMOS_TRANSISTOR_PAIR

Published:2009/7/1 20:12:00 Author:May | From:SeekIC

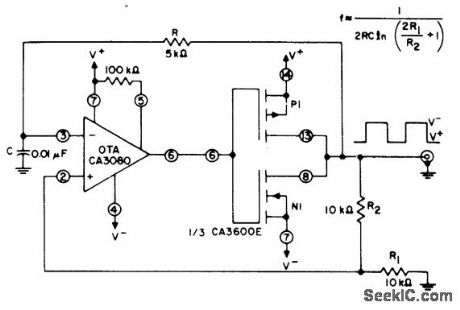

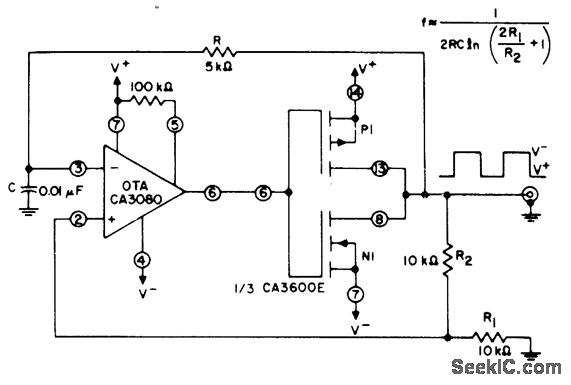

One transistor pair from CA3600E array is used with CA3080 operational transconductance amplifier to give precise timing and threshold for square waves，Quiescent power consumption is typically 6 mW with values shown.-''Linear Integrated Circuits and MOS/FET’s.''RCA Solid State Division, Somerville、NJ、1977, p 279.
