FOUR_CHANNEL_DISCRIMINATOR

Published:2009/7/19 22:02:00 Author:Jessie | From:SeekIC

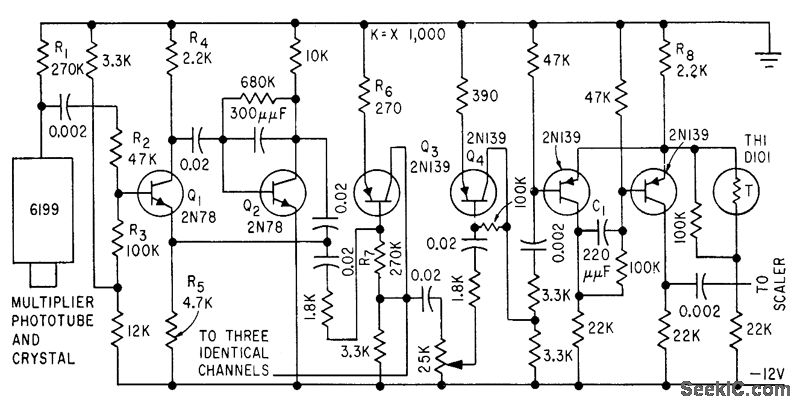

Common amplifier and four individual amplifiers drive triggers for four channels of sealers. Common amplifier supplies 7 v on common bus from Q3 to four potentiometers, settings of which determine discrimination point for each channel.-D. Enemark, Balloon-Borne Circuits Sort High-Altitude Cosmic Rays, Electronics, 32:35, p 52-55.
