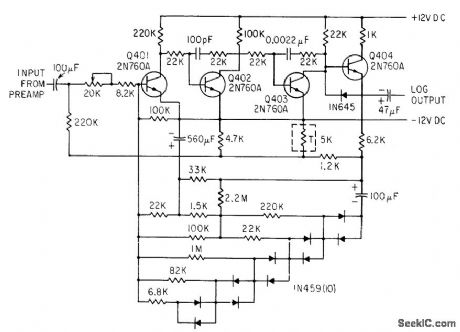

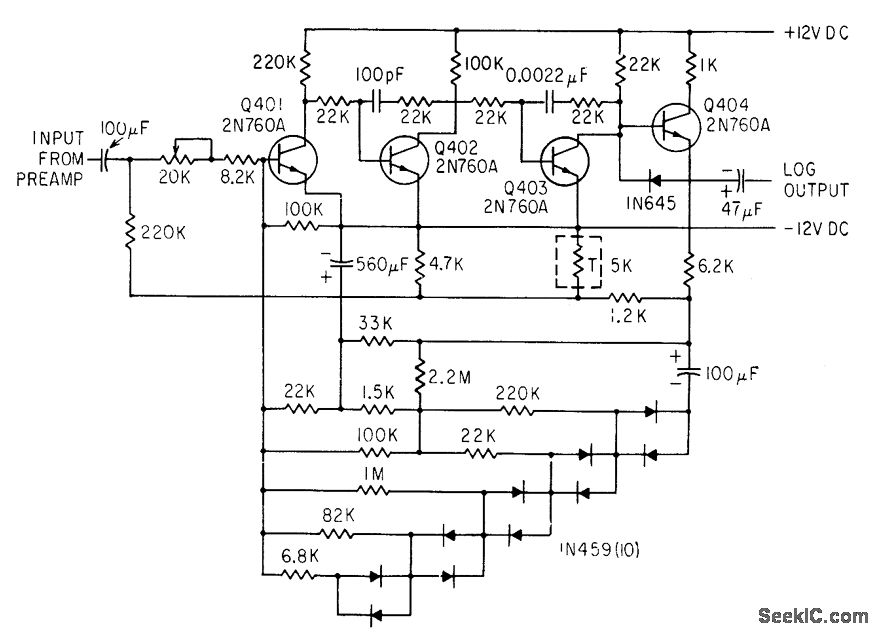

LOGARITHMIC_AMPLIFIER_FOR_05_TO_6_V_D_C

Published:2009/7/19 21:57:00 Author:Jessie | From:SeekIC

Uses operational amplifer and function generator principle lo compress detector signal levels to values within range of telemetering system.-S. Chase, Jr. and F. Schwarz, Mariner II Instrumentation: What Will It See on Venus ?, Electronics, 35:50, p 42-45.
