Laser Communication System electronic circuit diagram

Published:2013/4/1 3:19:00 Author:Ecco | Keyword: Laser Communication System | From:SeekIC

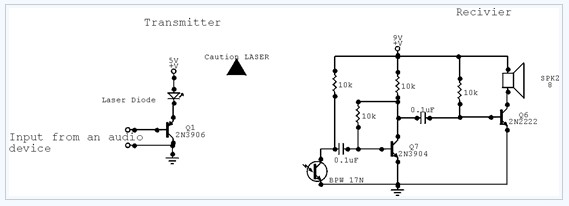

This is a simple Laser communication system. It can transmit and receive signal from any audio device.Communication distance is few meters. All components are not critical. Transistor 2N2222 may be on the coolrib. Laser diode is from laser pointer.
