NE6O2_DIRECT_CONVERSION_RECEIVER

Published:2009/6/17 22:13:00 Author:May | From:SeekIC

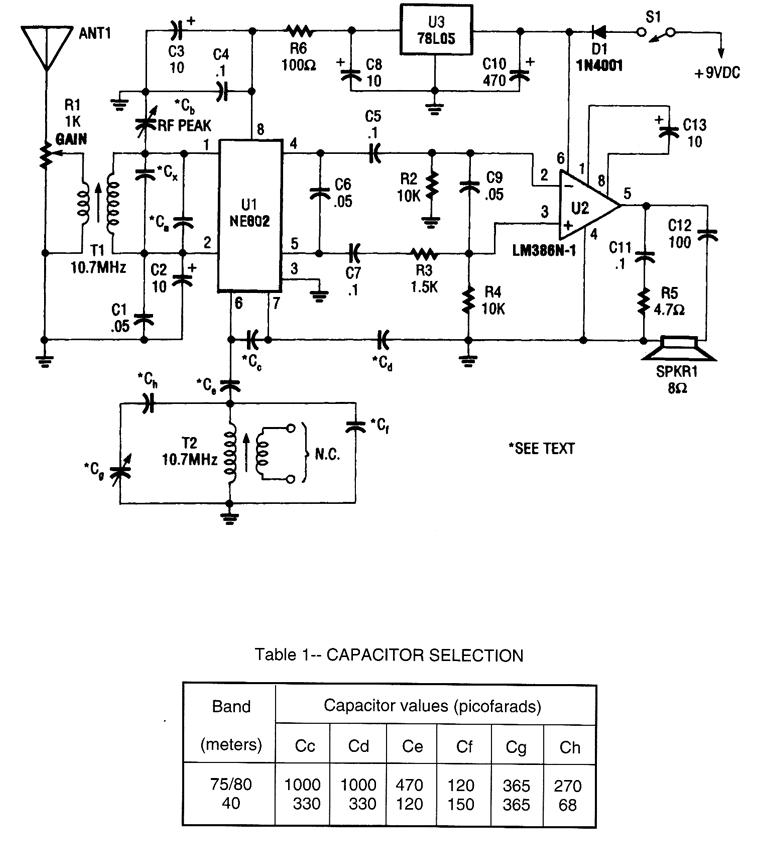

An NEC602 is used as a mixer with a zero IF frequency output. U2 acts as an audio amplifier. This receiver is primarily for SSB and CW signals. T1 and T2 are 10.7-MHz IF coils used in AM/FM transistorized radios, etc. or in any similar indicator.
