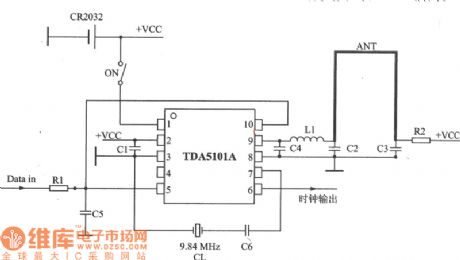

ASK 315 MHz transmitter circuit

Published:2011/5/8 3:13:00 Author:John | Keyword: transmitter circuit | From:SeekIC

TDA510lA is a transmitter chip of high efficiency power amplifier. It can be used in keyless entry systems, remote control systems, communications and security systems. The main technical features are as follows: Work frequency band is 315 MHz; ASK modulation;Power supply voltage is 2.1 ~ 4 V;Low voltage detection output is available;Maximum operating current is 9 mA (emission enabled), and standby mode current is l00 nA;It has high efficient power amplifier. And the amplifier can drive the loop antenna with low current consumption and extend service life of the battery.
