PULSE_COINCIDENCE_DETECTOR

Published:2009/7/16 23:20:00 Author:Jessie | From:SeekIC

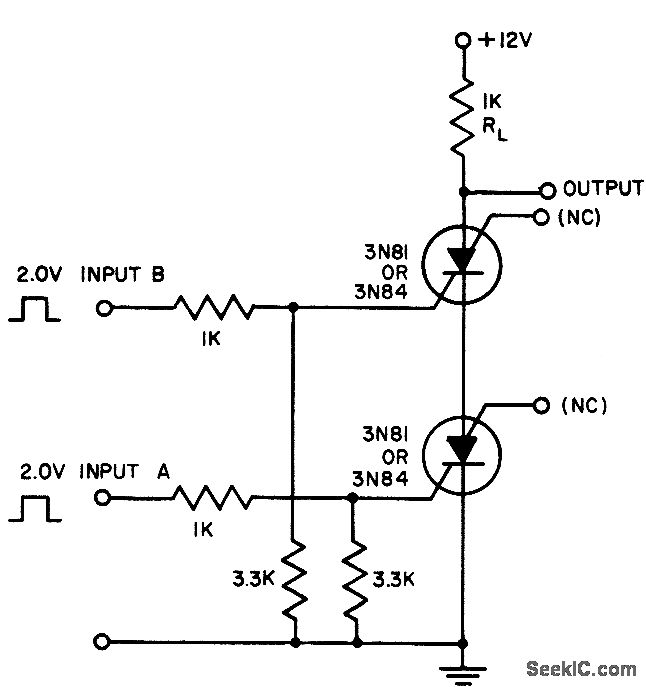

Provides output from silicon controlled switches only when input pulses are applied simultaneously at A und B, with 2 to 3 v amplitude. Over-lap of 1 microsec is sufficient for triggering.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 428.
