R5000 Computer Interface

Published:2012/11/21 2:06:00 Author:muriel | Keyword: R5000 , Computer Interface | From:SeekIC

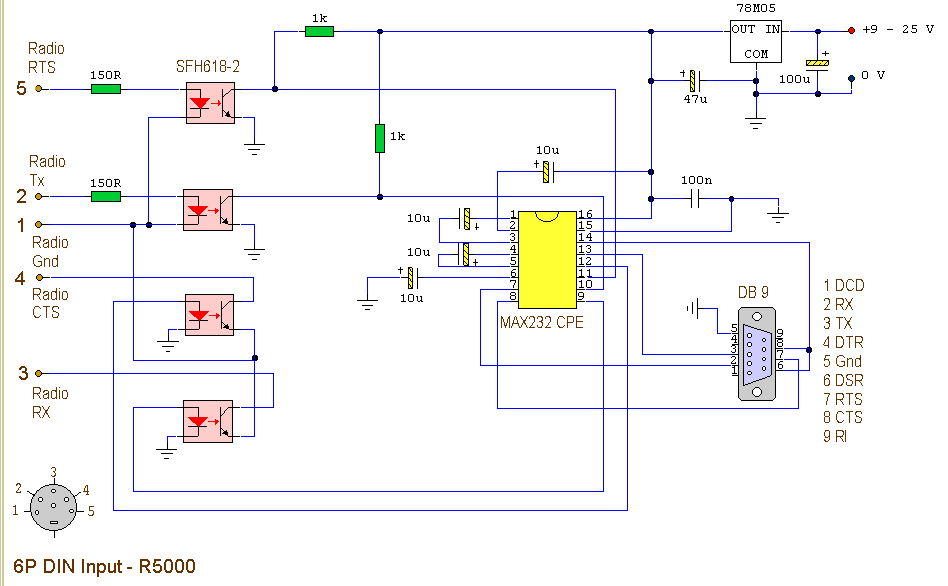

This circuit is a modified version of an original interface on QSL Net. It is a fully isolated interface allowing computer control of the Trio/Kenwood R5000 receiver. Separate software is needed to control the receiver.
