RGB_OUTPUT

Published:2009/7/15 21:55:00 Author:Jessie | From:SeekIC

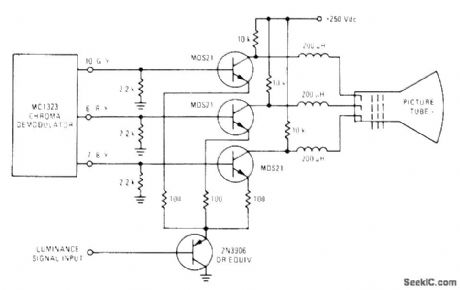

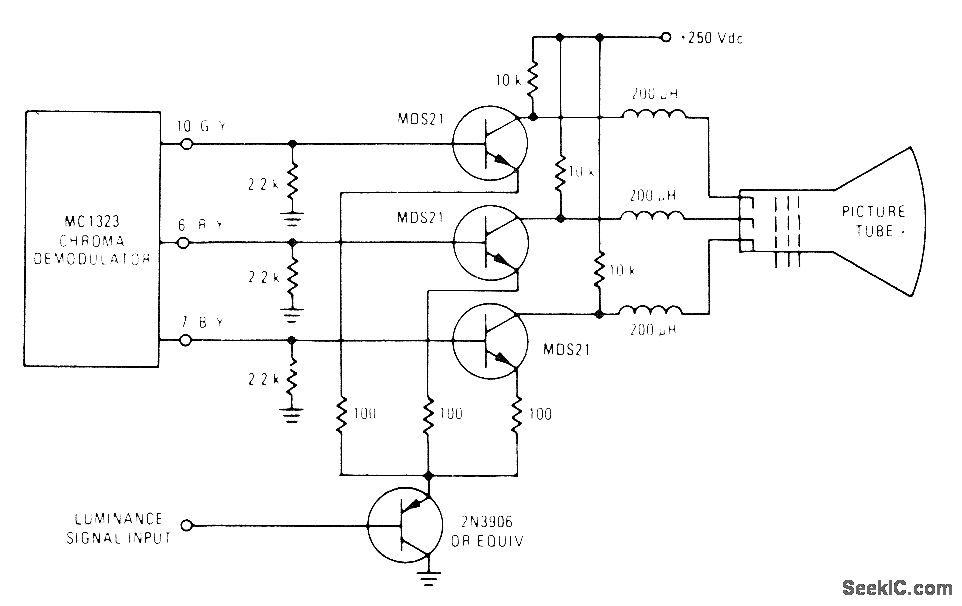

Motorola MDS21 high-voltages silicon transistors serve as out put stages for red, green, and blue channels of color TV receiver, to provide video amplitude requirements for color picture tube Transistors can be driven directly by most types of chroma demodulators，-″NPN Silicon Annular High Voltage Amplifier Transistors,″Motorola, Phoenix，AZ, 1978, DS 3364.
