TOROIDAL_CORE_TRF_SHORTWAVE_RECEIVER

Published:2009/6/24 4:45:00 Author:Jessie | From:SeekIC

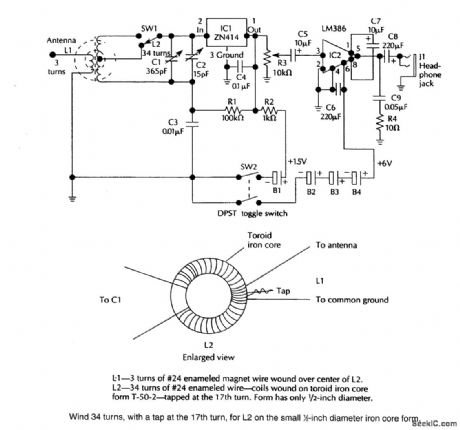

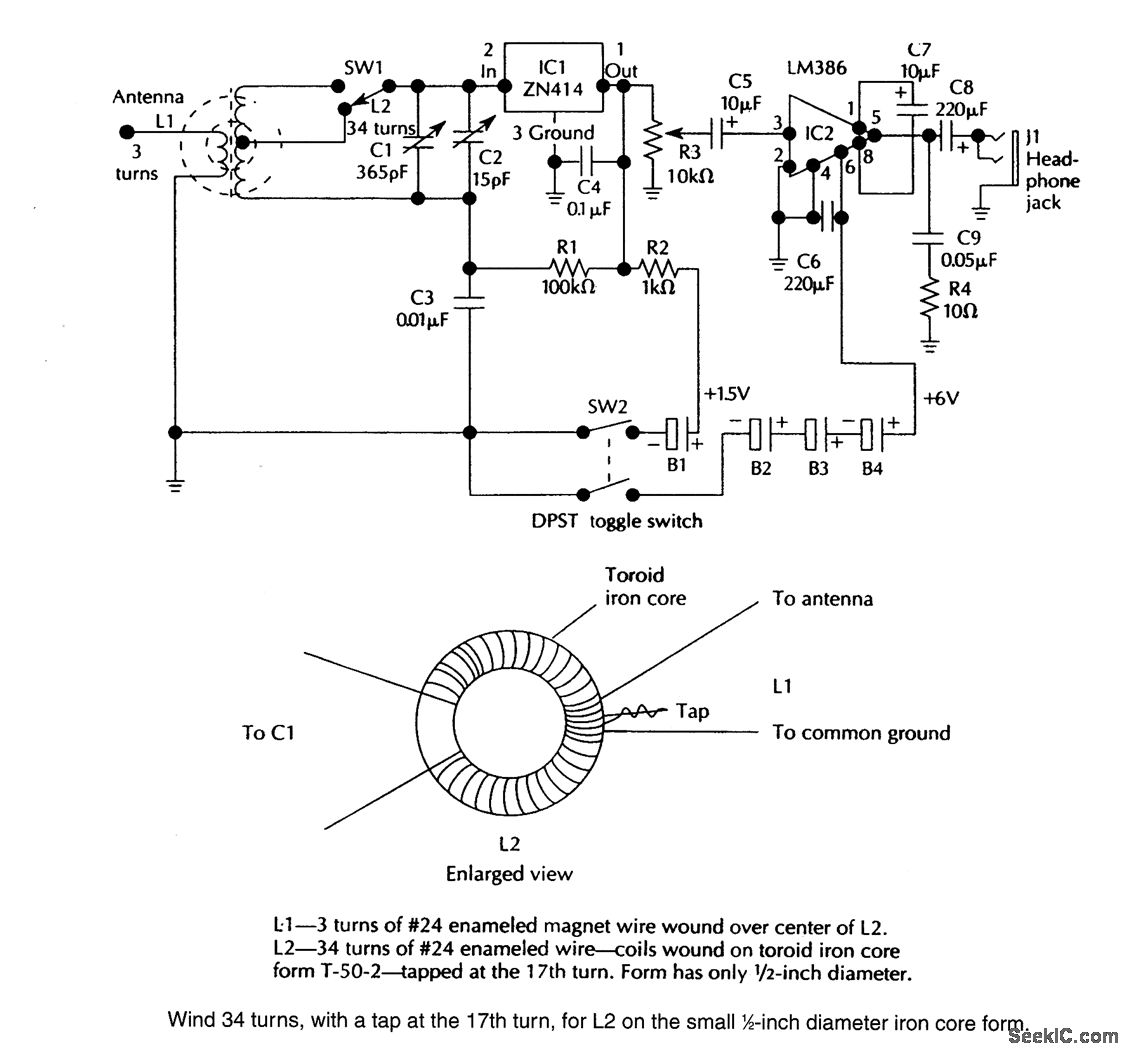

A ZN414 IC feeds an LM386 audio amplifier in this TRF circuit SW1is a band-switch，Coverageis up to 18 MHz.
