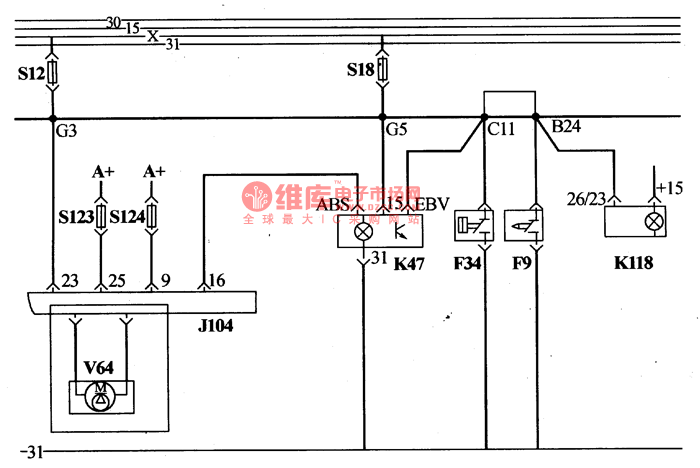

The ABS fault detecting circuit of Santana 20OOGSi

Published:2011/5/13 22:10:00 Author:Borg | Keyword: ABS, fault detecting, Santana | From:SeekIC

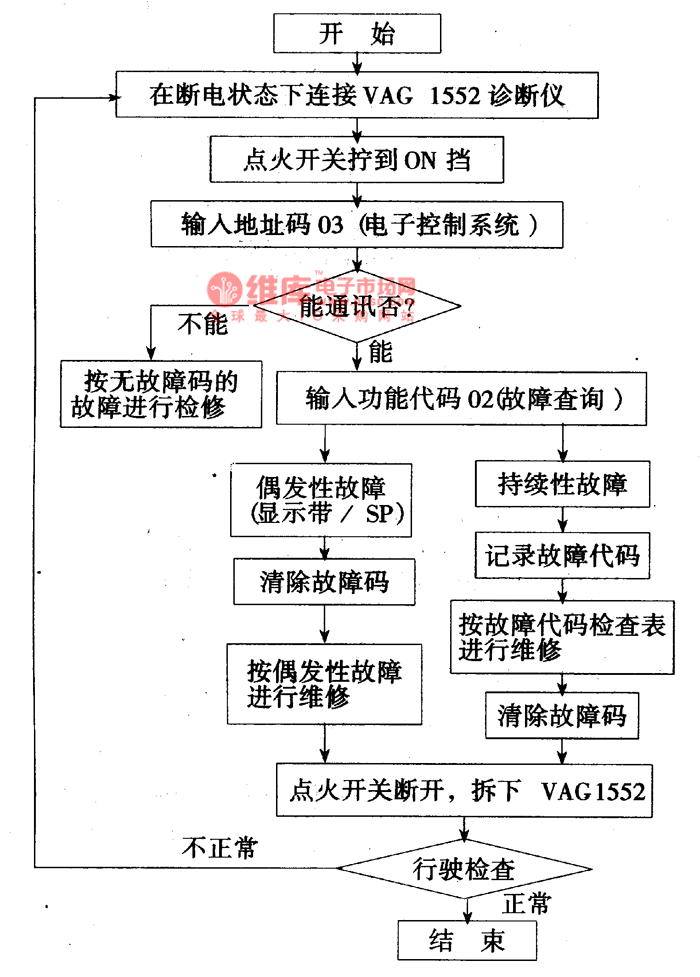

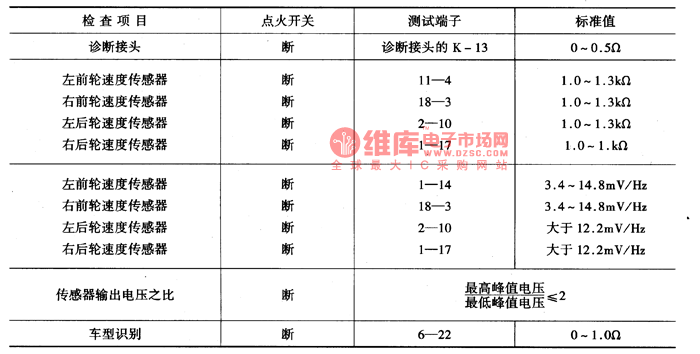

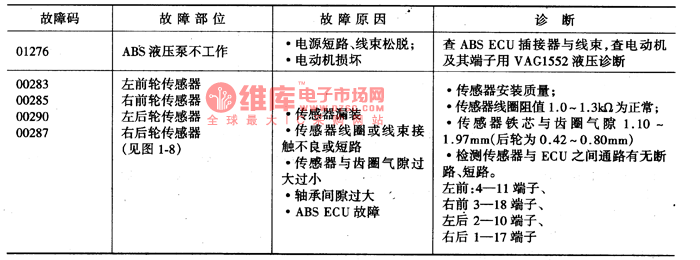

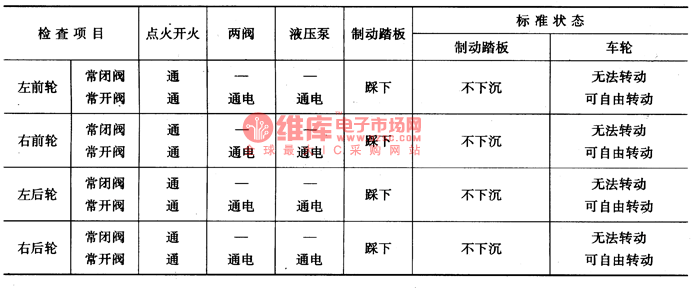

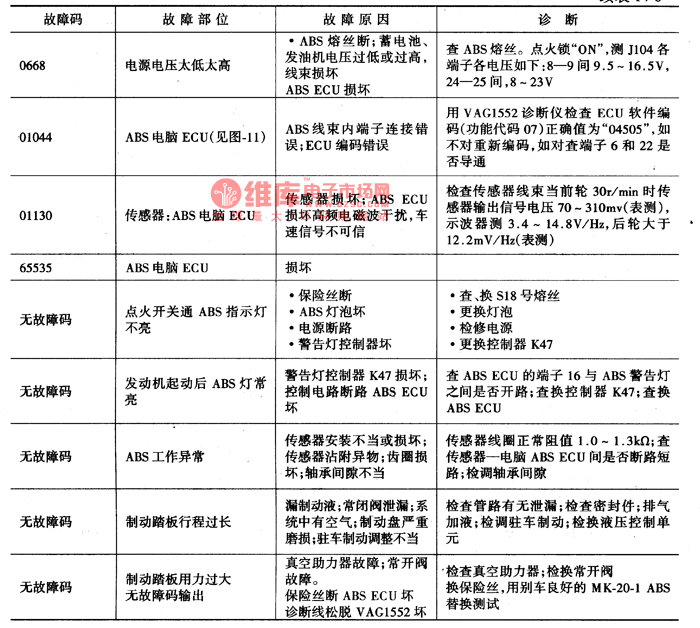

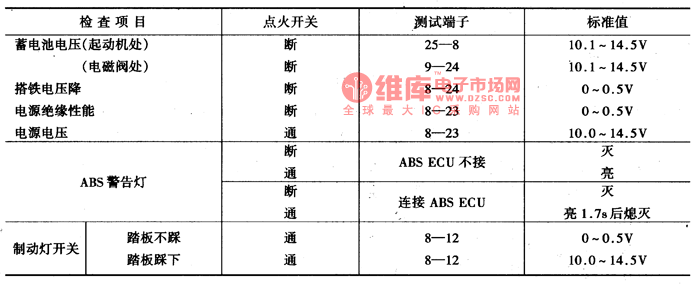

ABS computer J104 can not only control wheel brakeing automatically, but also detect its own faults. When it detect something wrong ABS, it will save it as the form of codes and light the ABS alarm lamp to remind the driver to remove it in time. In addition, there are some faults without any codes, which should be handled in regular methods. ABS fault detection can be completed with VAG1552 diagnostic apparatus,Fault codes and the removing methods are in Figure 1, and parameter detection in Figure 7, valve detection in Figure 8.
