The communication circuit of monitoring module and rectification module

Published:2011/8/22 21:16:00 Author:muriel | Keyword: monitoring module, rectification module | From:SeekIC

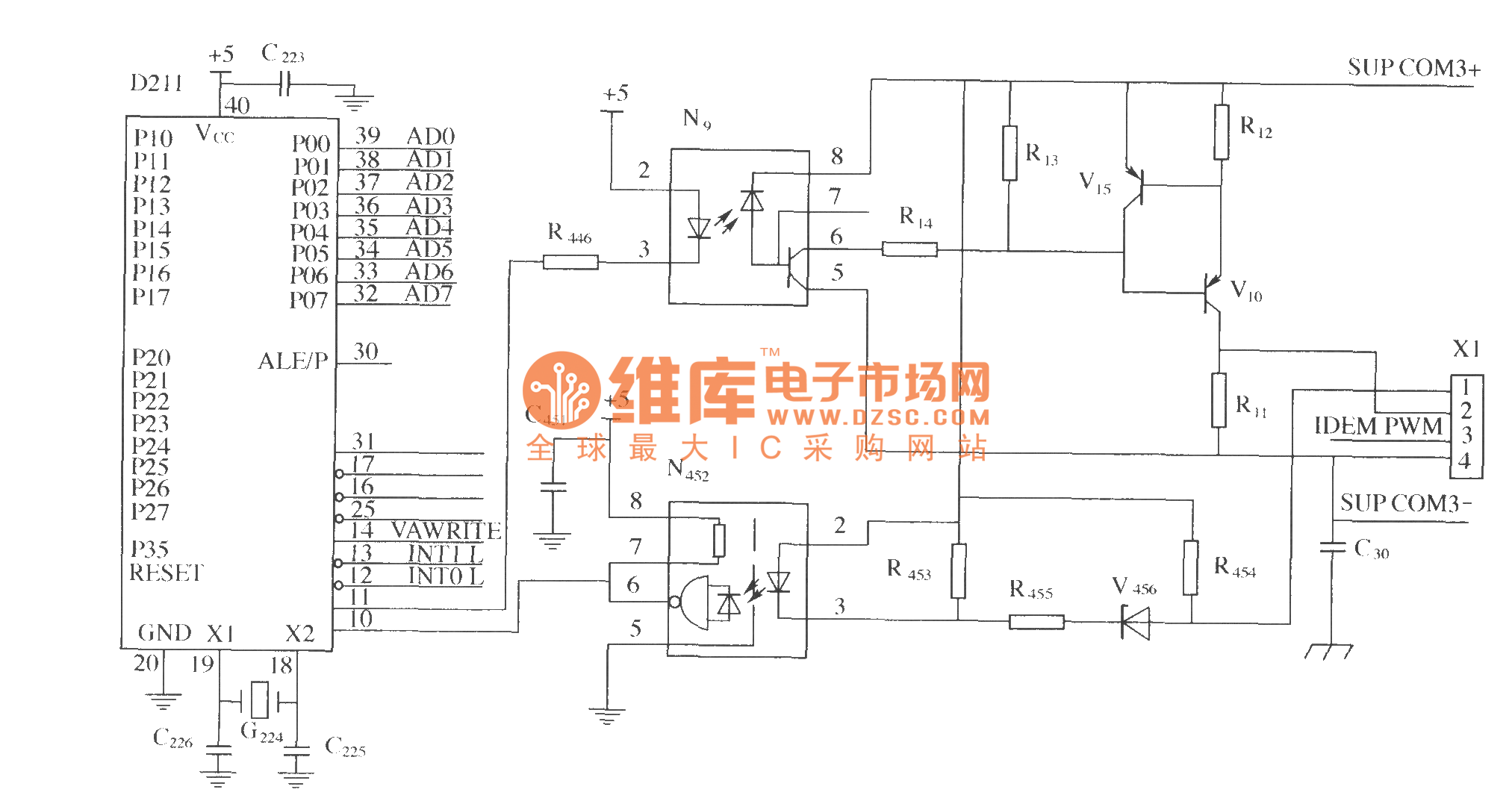

As shown is the monitoring module and rectification module of communication circuit. Optocoupler N9and N452 provide isolation between microprocessor D211 and rectification module, the N9 isisolated the send buffer V15 and V10, the send buffer V15 and V10 are designed for communcationdrive capability of 100 rectification module, N451 is a HG optocoupler buffer， it is receiving the rectification module's signals.
