WARBLE_TONE_INFRARED_TRANSMITTER

Published:2009/7/14 7:23:00 Author:May | From:SeekIC

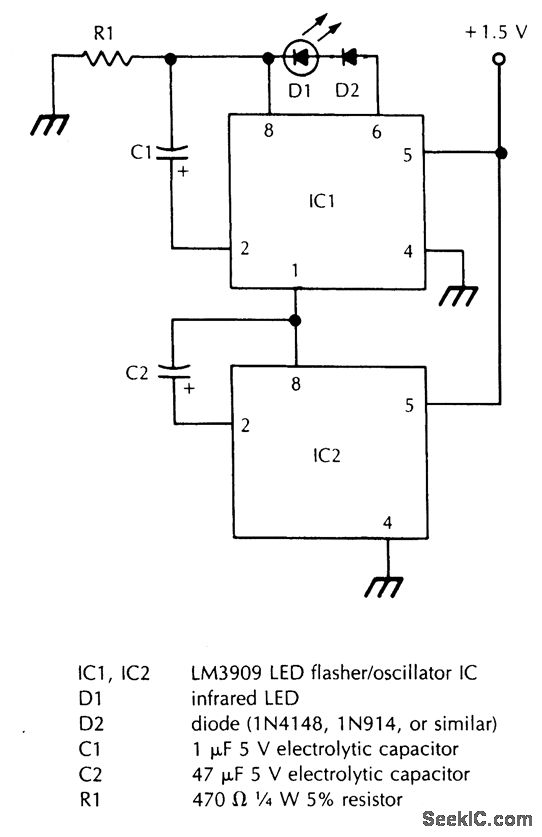

IC1 and IC2 are LM3909 LED flasher-oscillator devices. IC2 generates a low-frequency square wave that modulates the frequency of IC1. This circuit is useful for IR testing, communications link signal source, etc.
