WIRELESS_IR_HEADPHONE_RECEIVER

Published:2009/6/19 4:20:00 Author:May | From:SeekIC

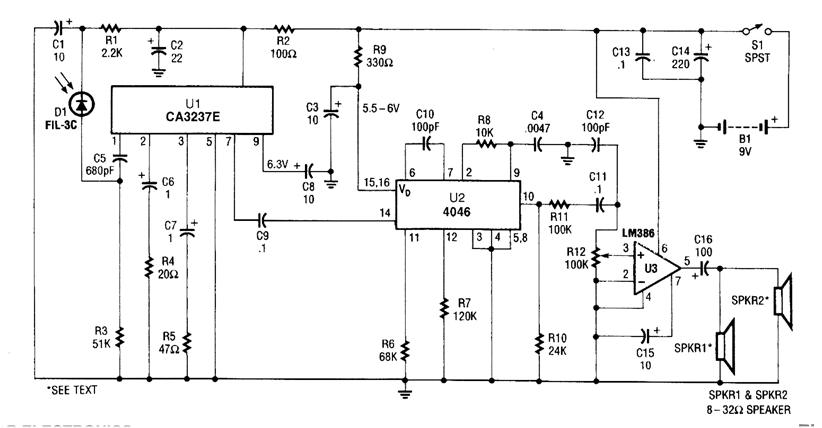

A photodiode D1 feeds high gain IR remote control preamp IC, a CA3237E. U2 is a PLL FM de-tector tuned to around 100 kHz. The detector output is amplified by U3 and it can drive a speaker or a set of headphones.
