ARITHMETIC_CELL

Published:2009/7/12 20:28:00 Author:May | From:SeekIC

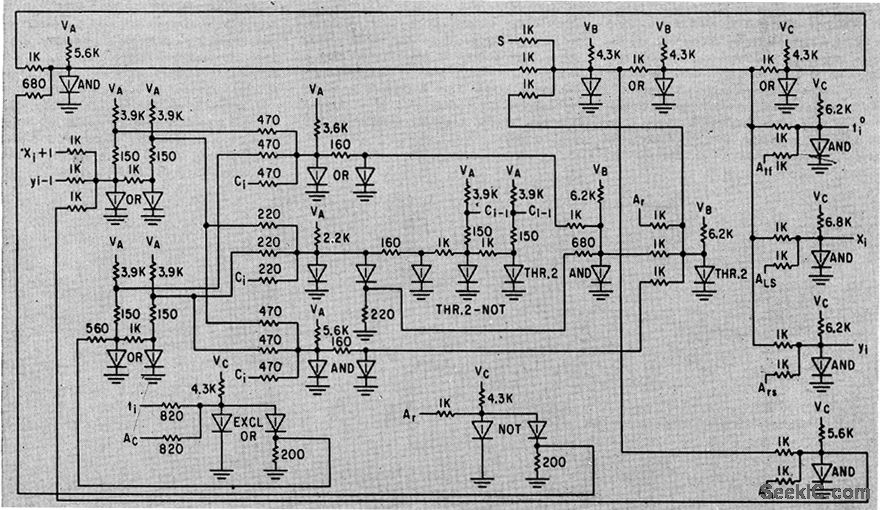

Uses 27 resistively-coupled tunnel diodes, powered from three-phase pulse supply. Repetition rate is 1 Mc.-T, Maguire, Computers Head for 1,000-Mc Opercttion, Electronics, 33:5, p55-59.
