M37221M6-single chip microcomputer control integrated circuit diagram

Published:2011/5/8 22:18:00 Author:Nicole | Keyword: single chip, microcomputer control | From:SeekIC

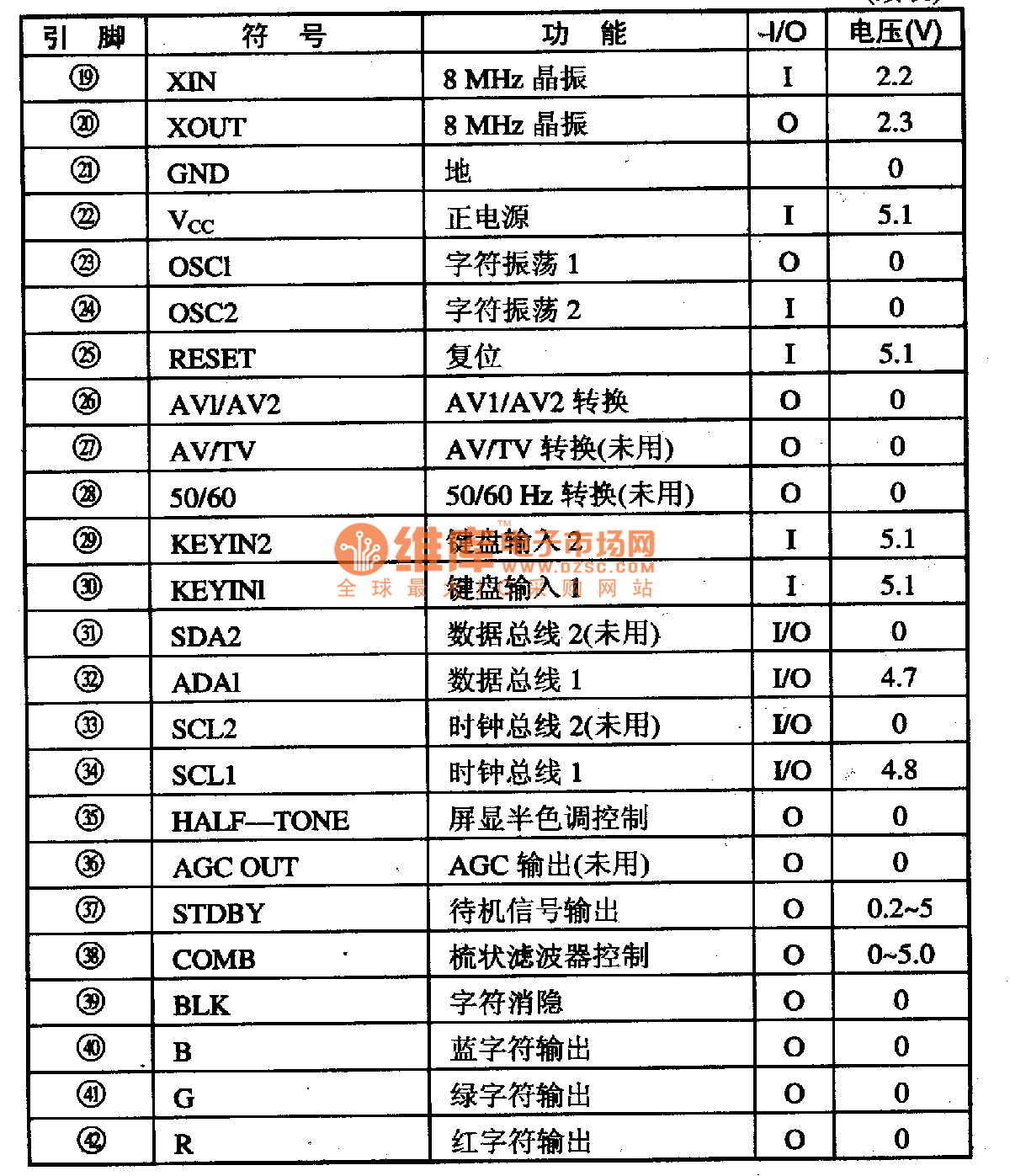

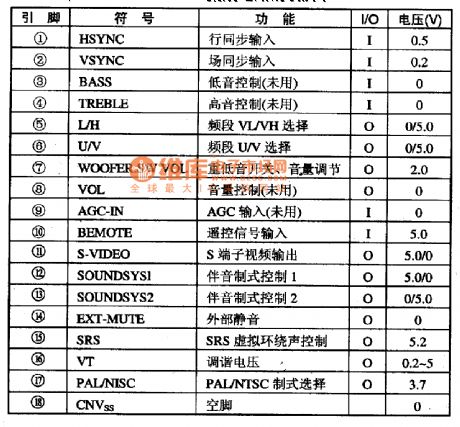

M37221M6 is a single chip microcomputer control integrated circuit which is produced by Mitsubishi Corp, it is specially used in TCL series large screen color television, such as TCL2911DZ、3811DZ、3416DI, the model is TCL一Mll in the TCL series. 1. functions and features M37221M6 integrated circuit contains frequency band control, I square meter C data and clock bus, key switch comiling and decoding, character display, AV/TV transfer control, system switching control, tone control, tune voltage control, opportunity-awaiting/start-up control, master clock crystal oscillator, character display clock circuit and other control circuits. 2. pin function and data M37221M6 integrated circuit adopts 42-foot dual in-line package, it is applied to TCL2911DZ series color television, the in function and data of this integrated circuit is shown in the table1. The table is the pin function and data of M37221M6 integrated circuit
