MN1515lTWE、MNl5151TWP Single-chip Microcomputer Integrated Circuit

Published:2011/5/6 3:54:00 Author:Sharon | Keyword: Single-chip, Microcomputer, Integrated | From:SeekIC

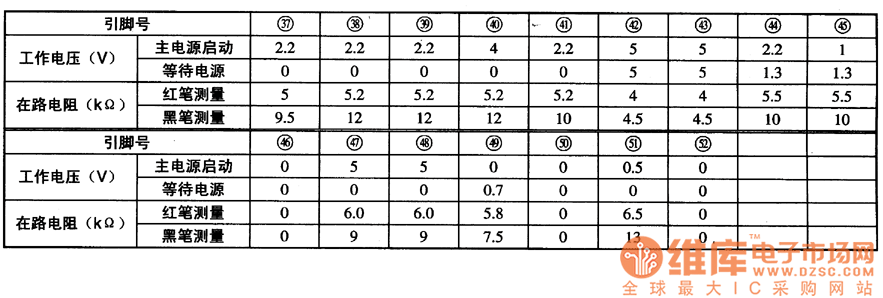

MN15151TWE, MN15151TWPare single-chip microcomputer integrated circuits produced by Panasonic company, widely used in movement of Panasonic large screen color TV series.1.FeaturesMN15151TWE, MN15151TWP IC's internal part is mainly composed of the central processing integrated circuits (CPU), clock oscillator circuit, the reset control circuit, the key bit instruction decoding circuit and other control and ancillary function circuit.2. Pin functions and data MN15151TWE, MN15151TWP IC is sealed in 52-pin dual in-style package. It's operating parameters are listed in Table, andthe in-circuit block diagram and pin functions and signal flow are shown in the figure.
