MN15287KEC31Single-chip Microcomputer Integrated Circuit

Published:2011/5/6 3:05:00 Author:Sharon | Keyword: Single-chip, Microcomputer, Integrated | From:SeekIC

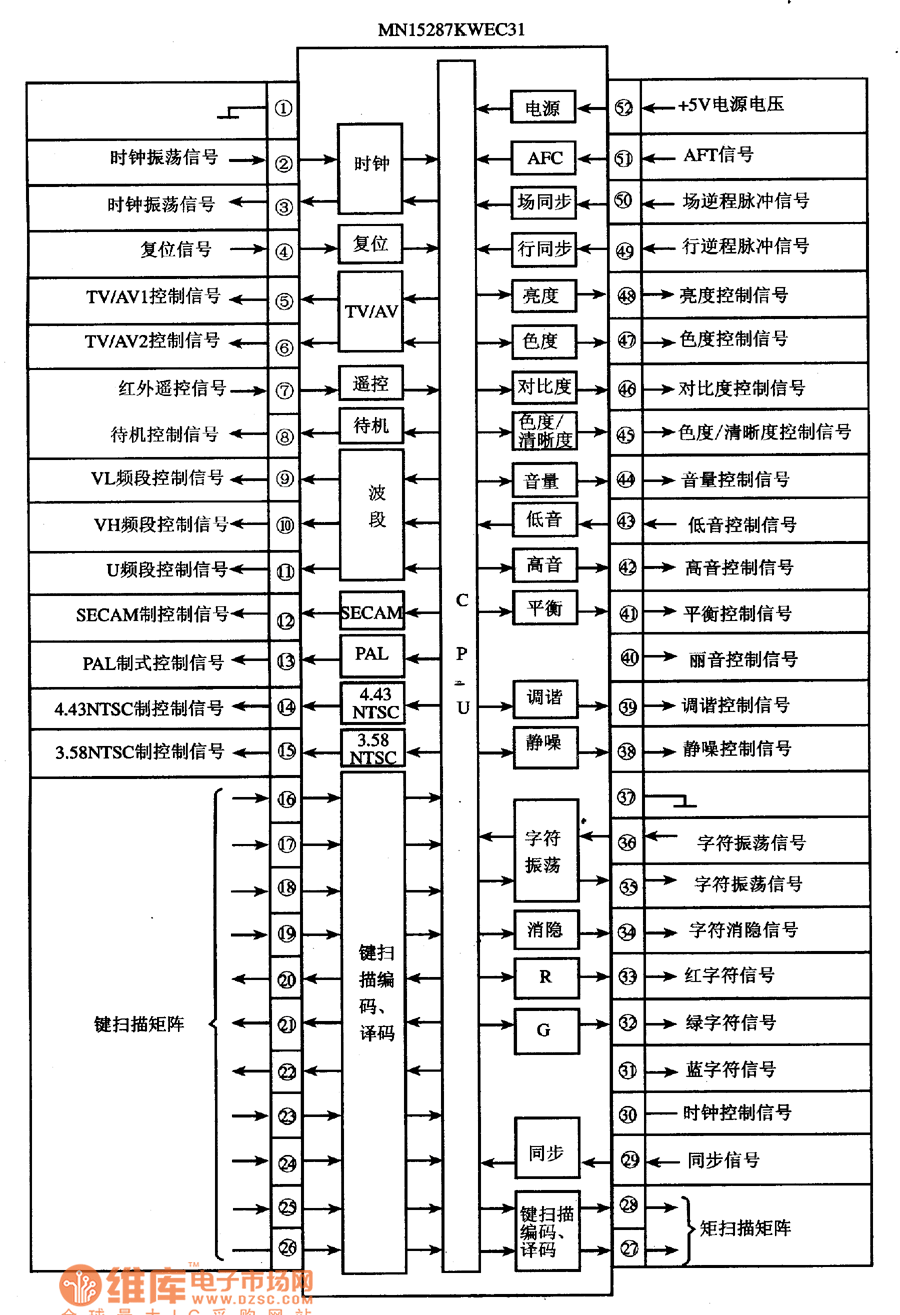

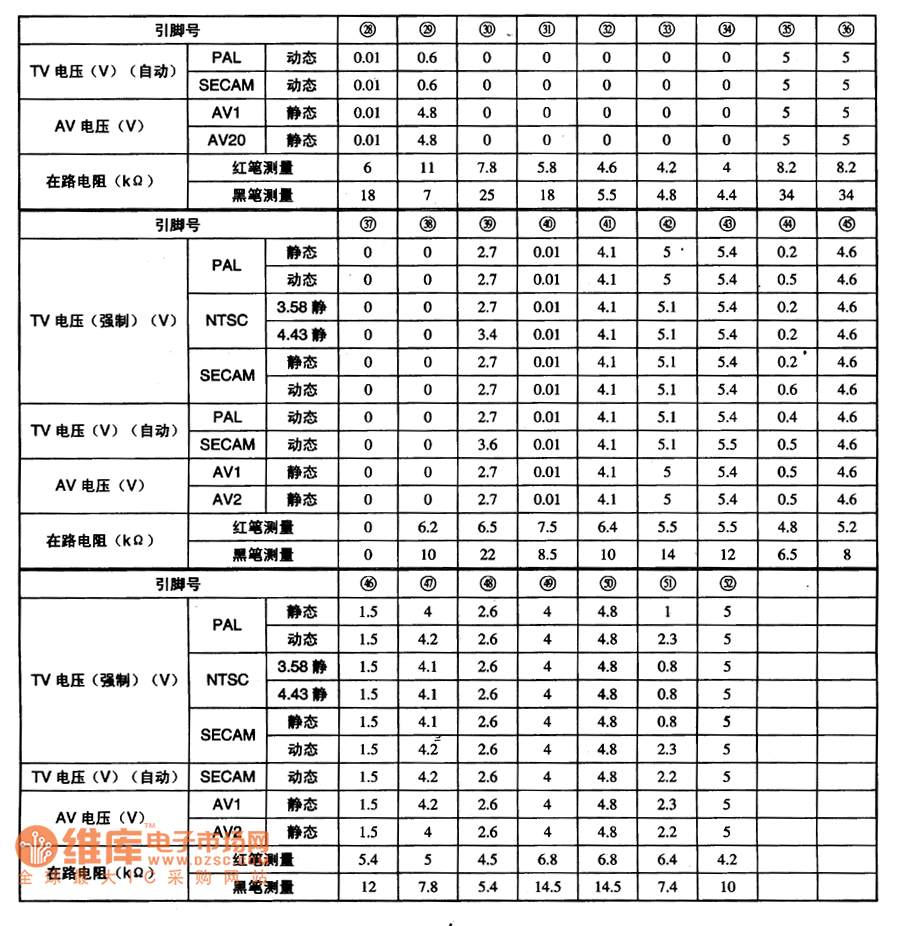

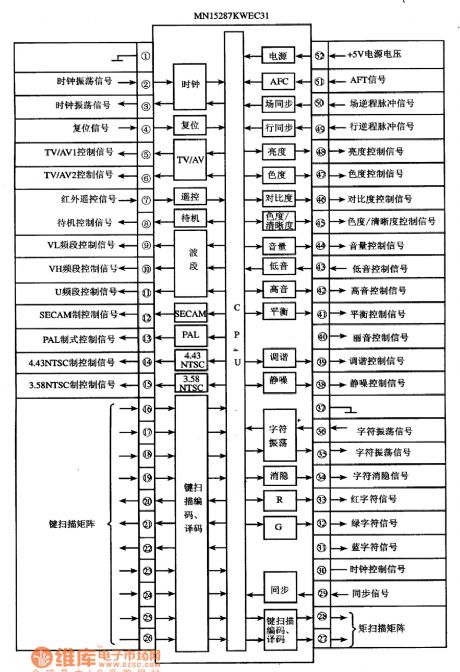

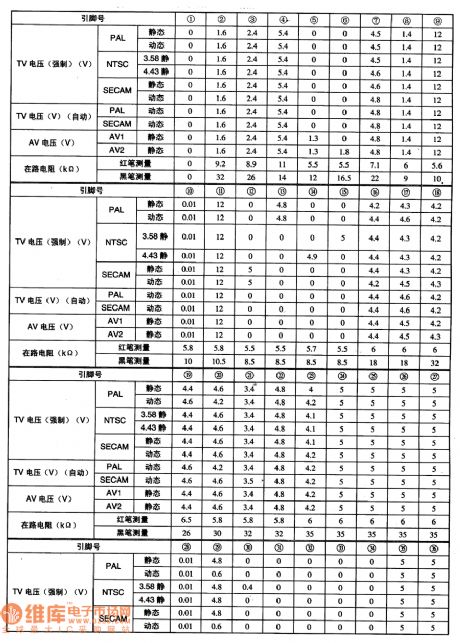

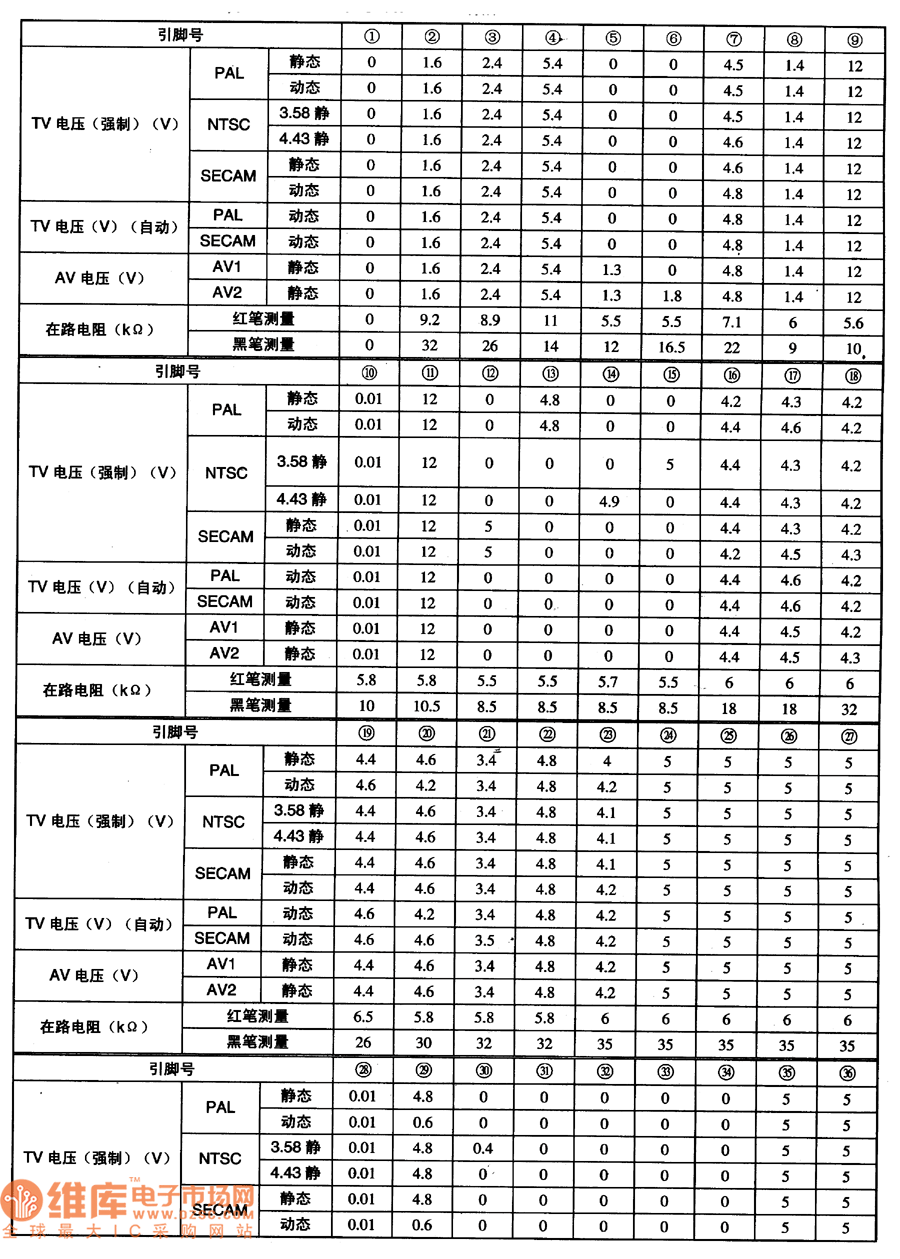

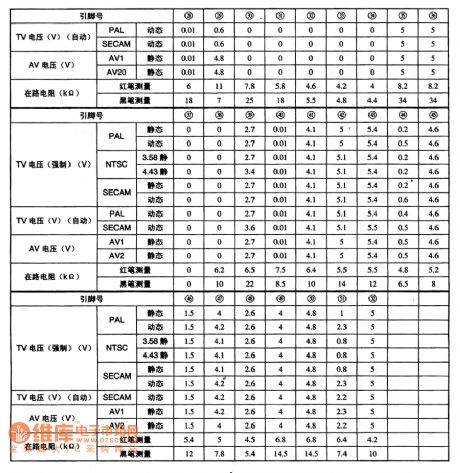

MN15287KEC31 is Panasonic's single-chip microcomputer integrated circuit, and is mainly used in a variety of large screen color TV of Toshiba, 1.Features:MN15287KWEC31 IC is usually used with monolithic memory integrated circuit MN12C2OlD to form a system control circuit of color television. It can control a variety of analog (brightness, color, contrast, volume control, bass and treble control, left and right channels balance control, etc.), TV / AV conversion, mode switch, tuning control, squelch control, etc. It also has a character display output circuit and the remote control signal processing circuit.2. Pin functions and dataMN15287KWEC31 IC is sealed in 52-pin dual packages, the internal circuit block diagram and pin functions and signal flow are shown in the figure, the operating parameters listed in Table.The measured data in the table is from Hong living (TA8611 + TA8759) movement on color TV.
