TMP87C054-7222 monolithic microcomputer integrated circuit diagram

Published:2011/5/9 1:25:00 Author:Ecco | Keyword: monolithic, microcomputer , integrated circuit | From:SeekIC

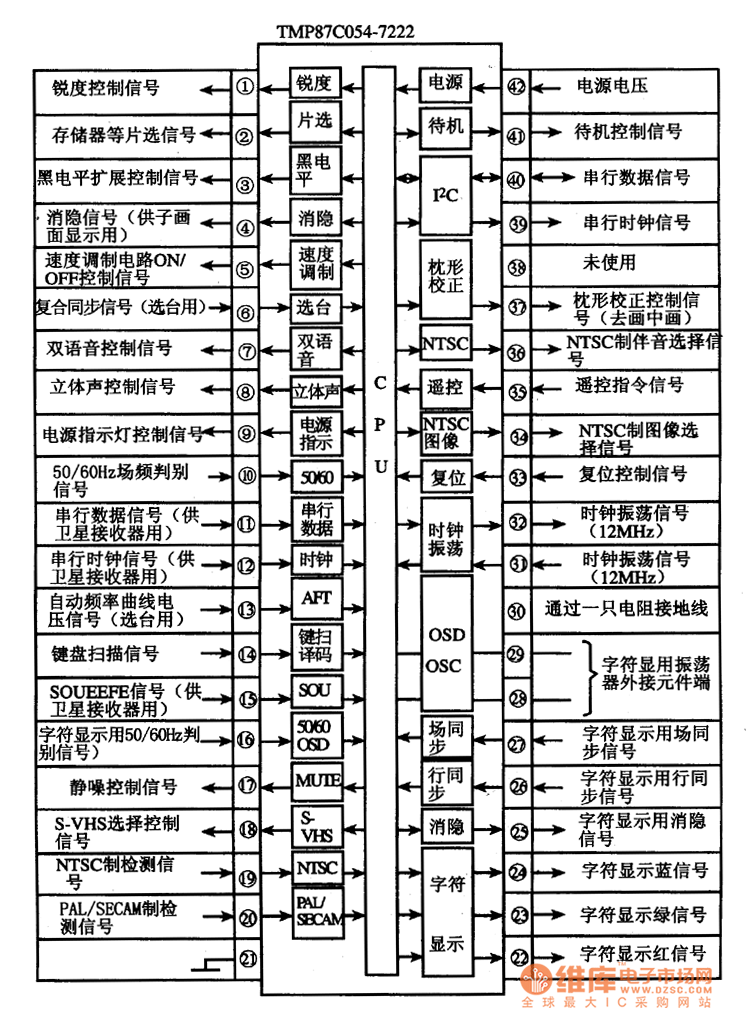

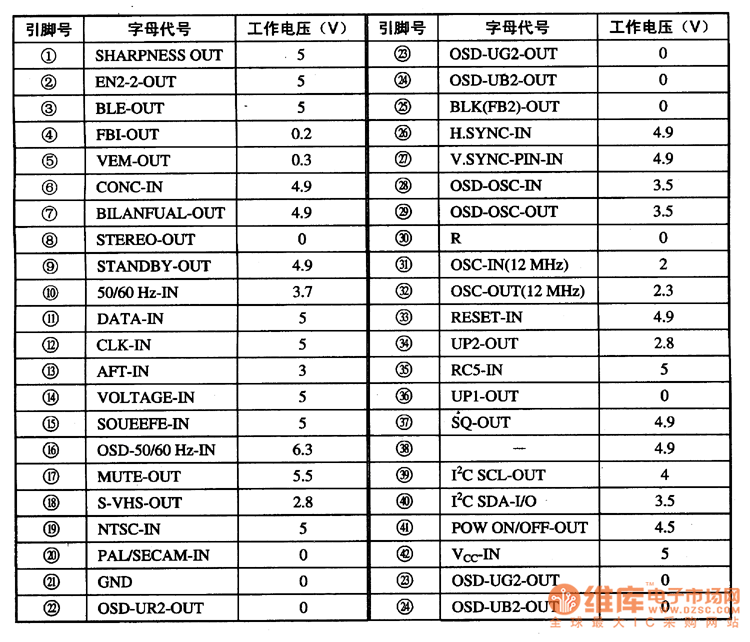

TMP87C054-7222 is the single-chip microcomputer IC produced by Toshiba in Japan, it is widely used in Haier, Toshiba, and other series of both large-screen color TV. TMP87C054-7222 integrated circuit uses the package with 54 feet in double rows, the pin-letter codes and data are listed in Table 1, the internal block diagram and pin functions and signal flowing are shown in Figure 1.
