TMP87CS38N-1E45A single-chip micro-computer integrated circuit diagram

Published:2011/5/6 3:16:00 Author:Ecco | Keyword: single-chip , micro-computer, integrated circuit | From:SeekIC

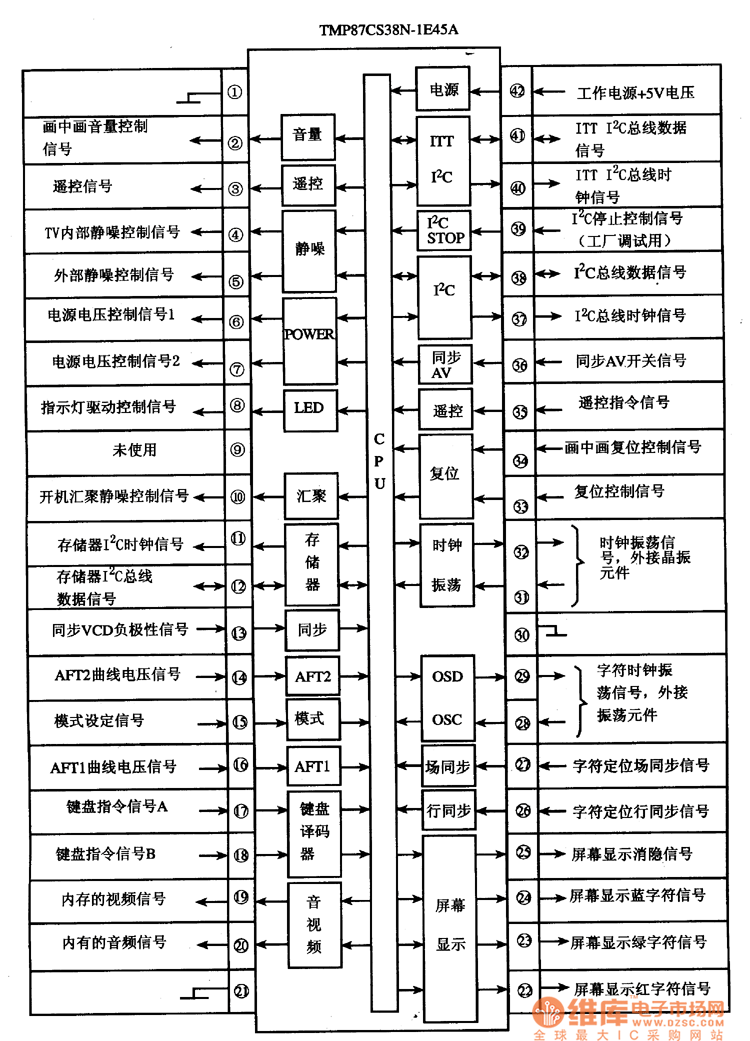

TMP87CS38N-1E45A is a single-chip microcomputer integrated circuit produced by Toshiba, it is widely used in the Konka, Changhong, and other series of large-screen color TV. TMP87CS38N-1E45A uses the package with 42 feet in dual rows, the pin letters code and data are listed in Table 1, the internal block circuit diagram and pin functions and signal flowing are shown in Figure 1. Table 1 shows the pin letters code and data of TMP87CS38N-1E45A integrated circuit.Figure 1 shows the block diagram and in functions and signal flowing of TMP87CS38N IC.
