TMP87CS38N single-chip microcomputer integrated circuit diagram

Published:2011/5/6 3:10:00 Author:Ecco | Keyword: single-chip , microcomputer, integrated circuit | From:SeekIC

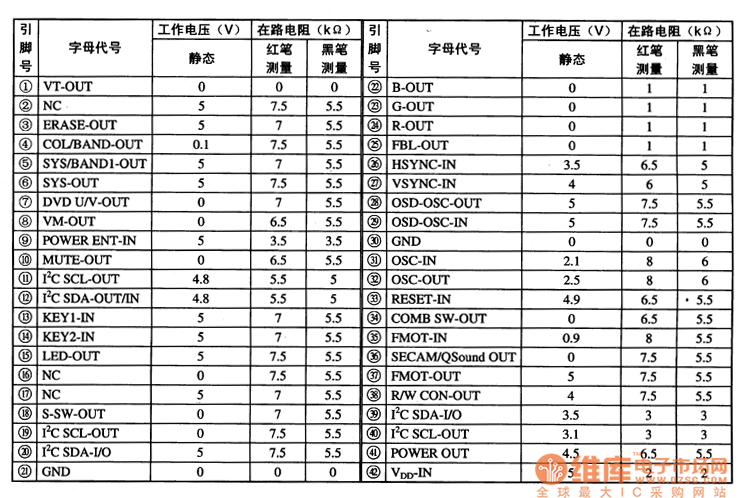

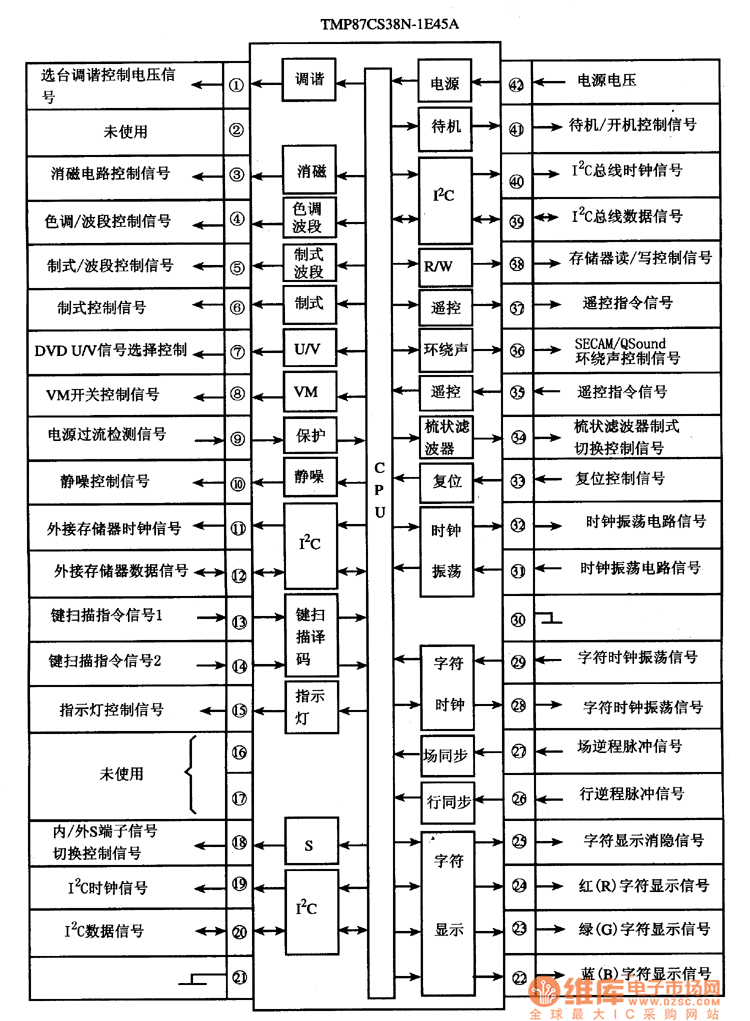

TMP87CS38N is single-chip microcomputer integrated circuit produced by Toshiba, it is widely used in Hisense, TCL, and other series of large-screen color TV. 1. Features of functionTMP87CS38N integrated circuits is mainly composed of central processing (CPU), reset control end, clock oscillation circuit, key bit instruction decoding circuit, I2C bus control circuit, memory control circuit, degaussing control circuit, remote control command signal processing circuit , screen display character generator and processing circuit, standby / on control circuit and other control and ancillary functions circuit. The block diagram of the circuit is shown in Figure 1. Figure 1 shows the block diagram and pin functions and signal flowing of TMP87CS38N integrated circuit 2. Pin functions and data TMP87CS38N integrated circuit uses the package with 42 feet in double rows, the pin and the signal flowing is shown in Figure 1, the pin code and the letters data are listed in Table 1. Table 1 shows the pins letter and data of TMP87CS38N integrated circuit.
