TMS73C167 monolithic microcomputer integrated circuit diagram

Published:2011/5/9 1:15:00 Author:Ecco | Keyword: monolithic , microcomputer , integrated circuit | From:SeekIC

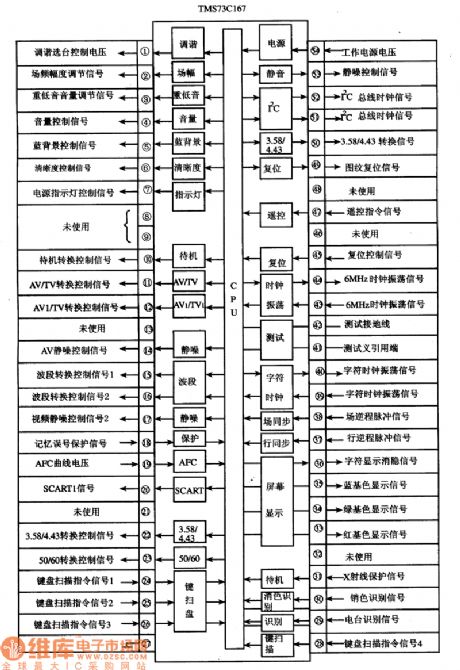

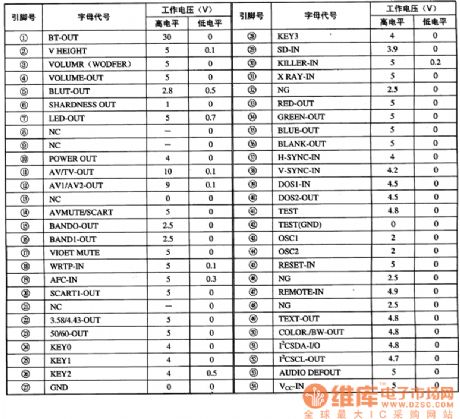

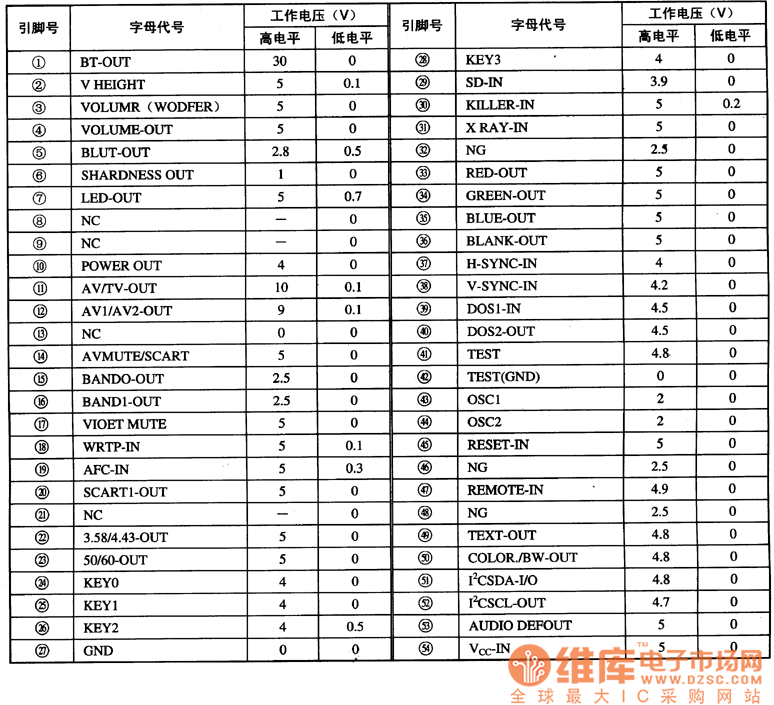

TMS73C167 is the single-chip microcomputer integrated circuit produced by Toshiba, it is widely used in Toshiba, Konka series. 1. Features of functionsTMS73C167 integrated circuits is mainly composed of the central processing unit (CPU), clock oscillator circuit, the reset control circuit, the key bit instruction decoding circuit, I2C bus control circuit, remote control command signal processing circuit, standby-on control circuit, squelch control circuit, the display character generator and handling circuit, and other auxiliary functions circuit.2. Pin functions and data TMS73C167 integrated circuit uses the package with 54 feet in double rows, the pin functions and signal flowing are shown in Figure 1, the pin letter code and data are listed in Table 1.
