0_10_kHz_WITH_0_10_V_CONTROL

Published:2009/7/14 4:58:00 Author:May | From:SeekIC

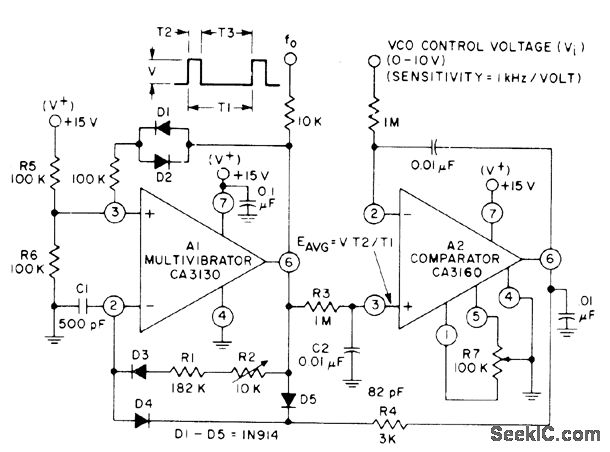

CA3130 MVBR generates pulses of constant amplitude V and width T2. Average output voltage is applied to noninverting input of comparator (through integrating network R3-C2. Comparator output signal from pin 6 is fed through R4 and D4 to inverting terminal 2 of A1 for adjusting MVBR interval T3 so EAVG is equal to control voltage.- Linear Integrated Circuits and M0Sf/FET's, RCA Solid State Division. Somerville, NJ, 1977, p 269.
