10_MHz_COAX_DRIVER

Published:2009/7/15 4:48:00 Author:Jessie | From:SeekIC

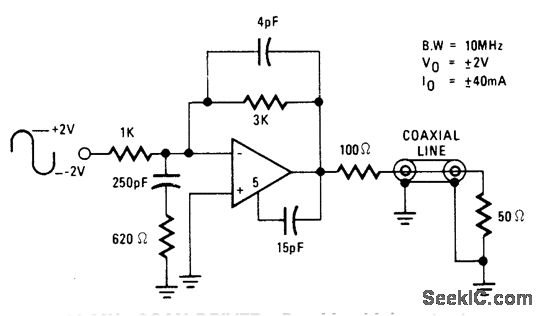

Provides high output current to coaxial line over bandwidth limited only by single-pole response of feedback components. Response is fiat with no peaking and distortion is low. Uses Harris HA-2530/2535 wideband amplifier having high slew rate.- Linear & Data Acquisition Products, Harris Semiconductor, Melbourne, FL, Vol, 1, 1977, p 7-54 (Application Note 516).
