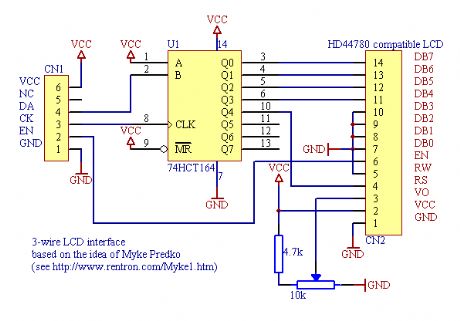

3-wire serial LCD interface

Published:2012/12/6 1:16:00 Author:muriel | Keyword: 3-wire, serial, LCD interface | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Control_Circuit/3_wire_serial_LCD_interface.html

Print this Page | Comments | Reading(3)
