400_CPS_DRIVER

Published:2009/7/23 23:26:00 Author:Jessie | From:SeekIC

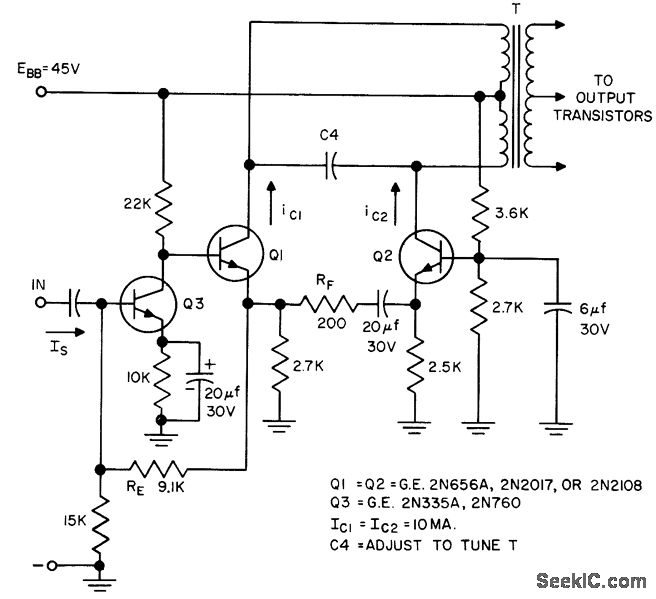

Uses modified long-tail pair to give highly stable gain. Separate emitter resistors improve bias stability. Provides push-pull operation.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 222.
