5_AND_15_V_SINGLE_CONTROL

Published:2009/7/5 23:52:00 Author:May | From:SeekIC

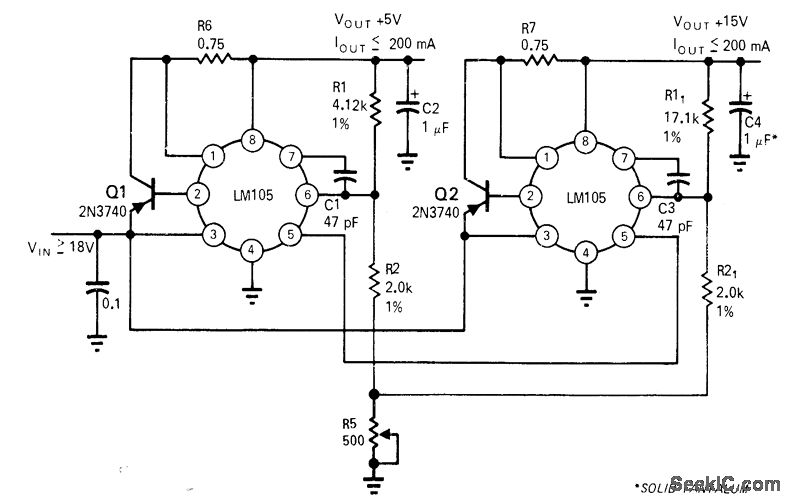

Single poten-tiometer serves for adjusting two reguiators simultaneously, Accuracy depends on output voltage differences of reguiators； error decreases when output voltages are closer Article gives design equation and covers other possiblesources of error．-R C Dobkin, One Adjustment Controls Many Regulators、EDN Magazine, Nov,1,1970 p33-35
