5_V_TO_200_V_WITH_SWITCHING_REGULATOR

Published:2009/7/14 3:31:00 Author:May | From:SeekIC

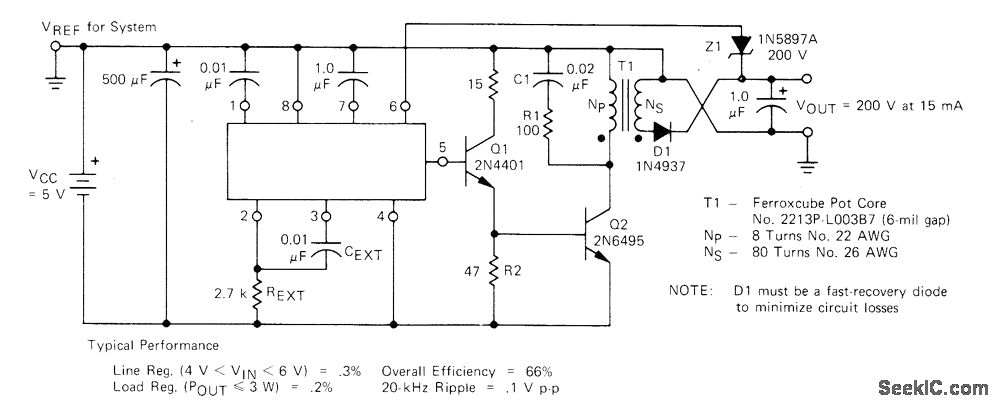

Converts standard logic supply voltage to high voltage required by gas-discharge displays, sing Motorola MC3380 as table MVBR as control element in switching regulator. Will drive up to 15 digits. Operating frequency is about 20 kHz.-H. Wurzburg, Control Your Switching Regulator with the MC3380 As table Multivibrator, Motorola, Phoenix, AZ, 1975, EB-52.
