9v POWERED XENON PHOTOFLASH Controller

Published:2012/9/4 20:39:00 Author:Ecco | Keyword: 9v, POWERED, XENON , PHOTOFLASH Controller | From:SeekIC

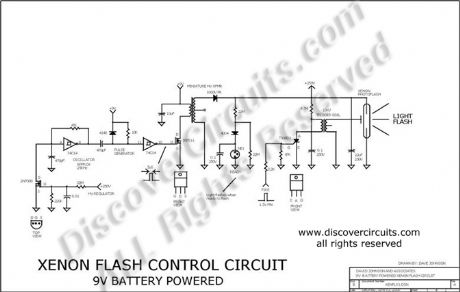

This 9v battery powered circuit is designed for remote control flash needs. A charge control circuit turns off the high voltage generator when the photoflash capacitor is fully charged. A neon lamp is included to indicate when the system is ready to flash. Source: discovercircuits
