ACTIVE_BASS_AND_TREBLE_TONE_CONTROL

Published:2009/6/24 4:41:00 Author:Jessie | From:SeekIC

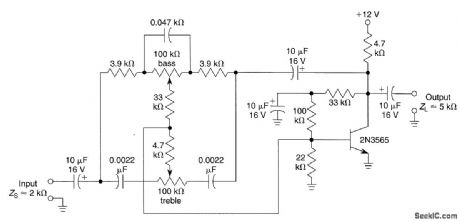

A single transistor used as a feedback amplifier is connected with ac feedback through the tone controls, which determine the frequency response of the stage.
