ANTITHEFT_DEVICE

Published:2009/6/22 23:43:00 Author:May | From:SeekIC

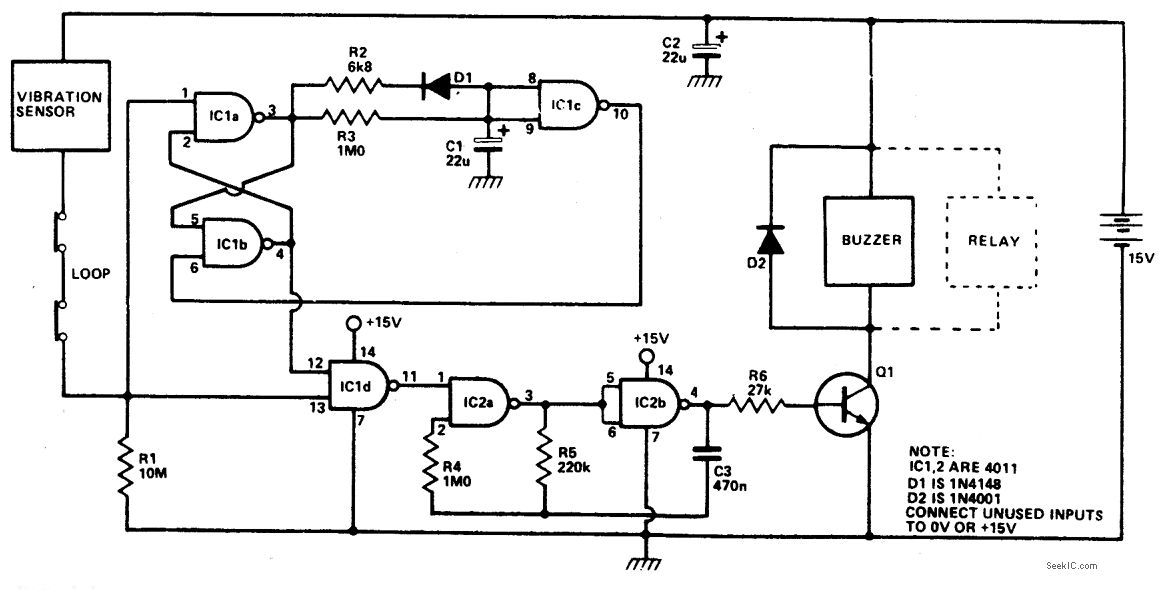

Any momentary break In the protective loop or tripping of the normally closed vibration sensor，causes alarm to sound for 20 seconds，If the circuit is open all the time，the alarm will sound continuously.
