AUTOMATIC_TAPE_RECORDING

Published:2009/6/23 1:42:00 Author:Jessie | From:SeekIC

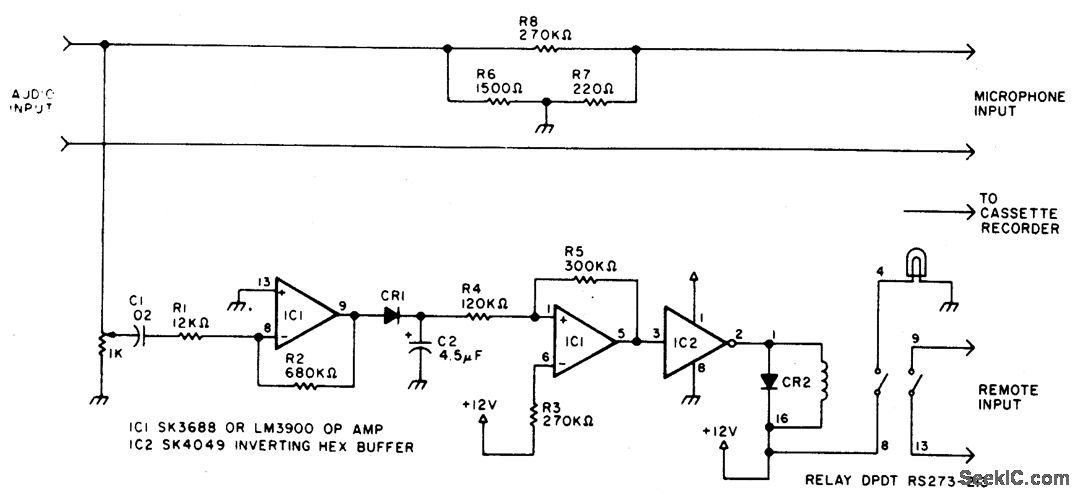

Amateurs don’t haveto missthe action while away from the tug．This circuit turns on a tape recorder whenever the recelver’s squelch IS broken. After signal loss， the recorder will shut off following a slight delay.
