A touch switch circuit

Published:2011/6/25 1:26:00 Author:qqtang | Keyword: touch switch | From:SeekIC

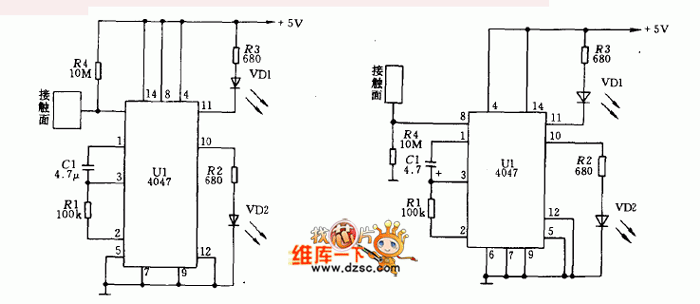

The figured circuit just connects the touch board with the positive pole of the power supply, but not the earth. Therefore, its working principle and application condition haven't changed.
