Agricultural application pesticide light control black light lamp circuit

Published:2011/8/10 3:58:00 Author:Nicole | Keyword: Agricultural application pesticide, light control, black light lamp | From:SeekIC

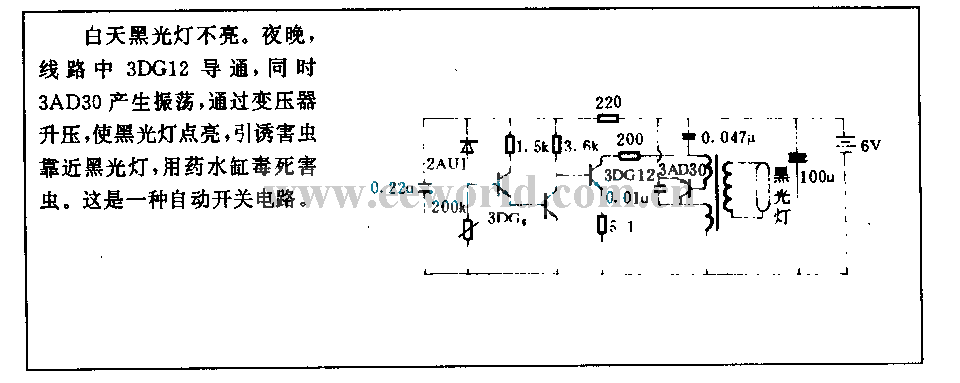

During the day, the black light lampdoes not light. At night, 3DG12 turns on, at the same time, 3AD30 produces oscillation, it is rised by transformer, then the black light lamp is lightened, it can attract pests, then it will use drug tank to poison the pests. It is an automatic switch circuit.
