ALARM_SOUNDER_FOR_FLEX_SWITCH

Published:2009/6/14 23:02:00 Author:May | From:SeekIC

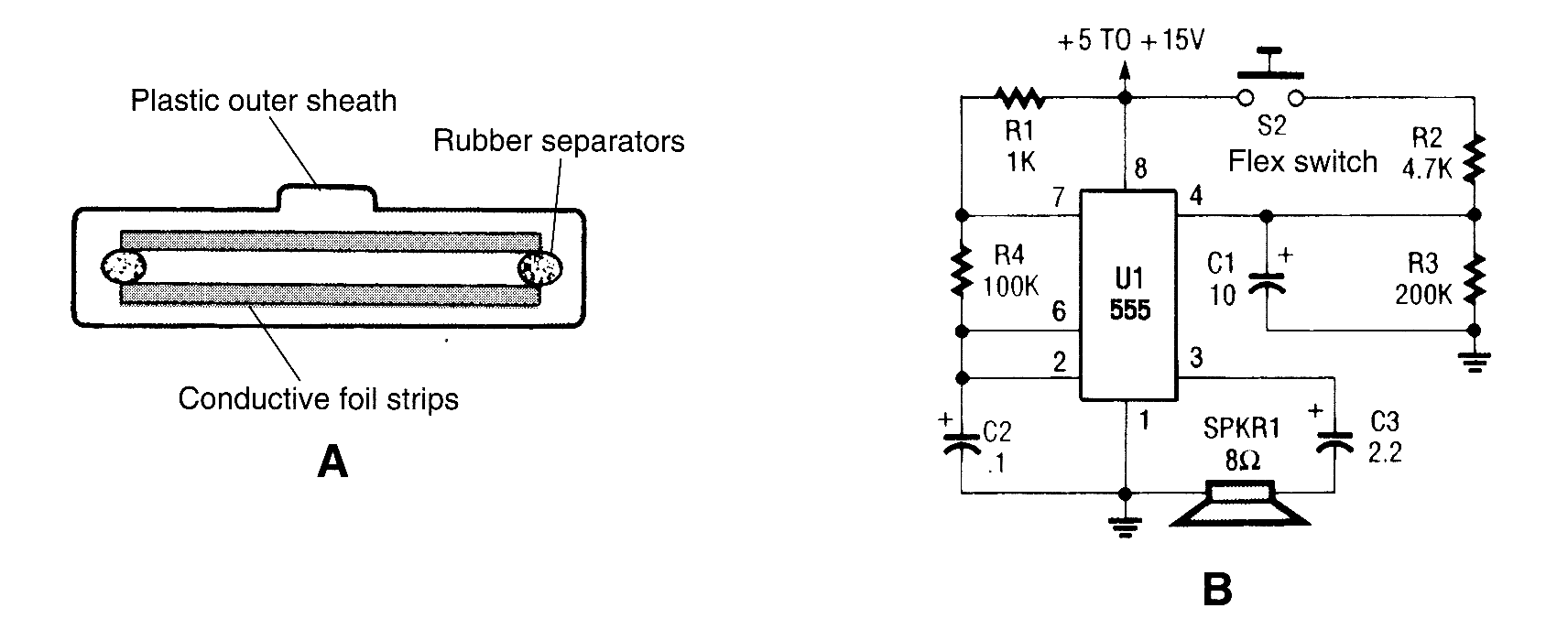

This is a cross-sectional diagram of a flex switch. They can be used as pushbutton or even posi-tion sensors. This schematic diagram shows an oscillator, which is used as an alarm sounder, trig-gered by a flex switch.
