BURGLAR_ALARM_WITH_NC_AND_NO_SWITCHES

Published:2009/7/9 21:47:00 Author:May | From:SeekIC

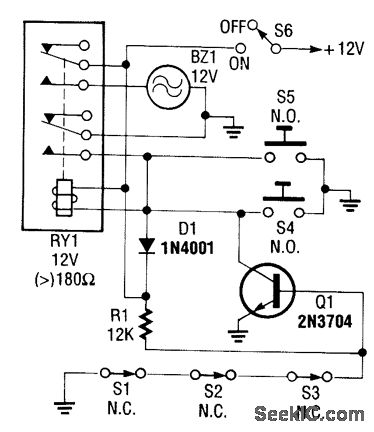

This circuit uses both NC and N0 sensors. Series NC sensors allow Q1 to activate RY1. NO sensors directly activate RY1.
